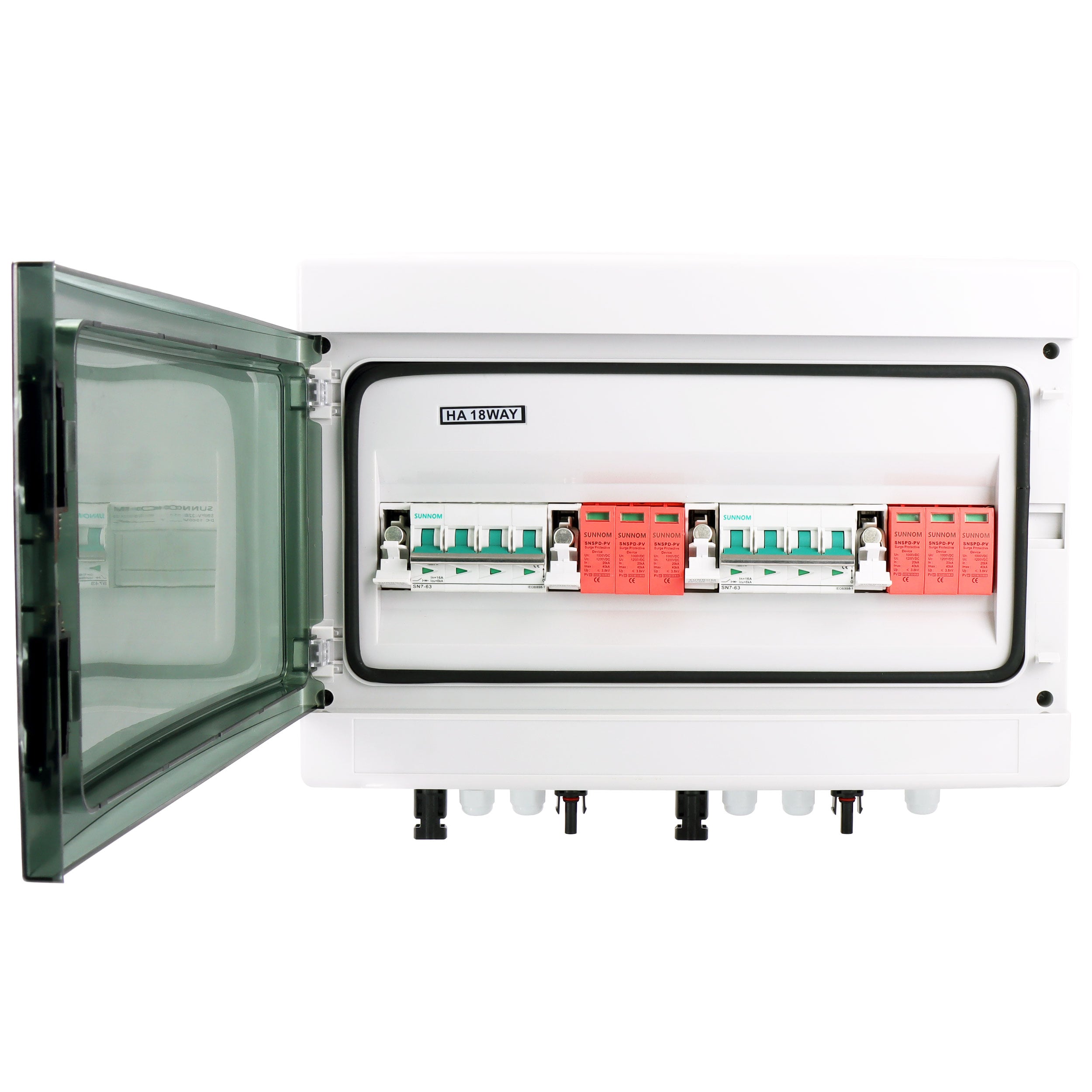

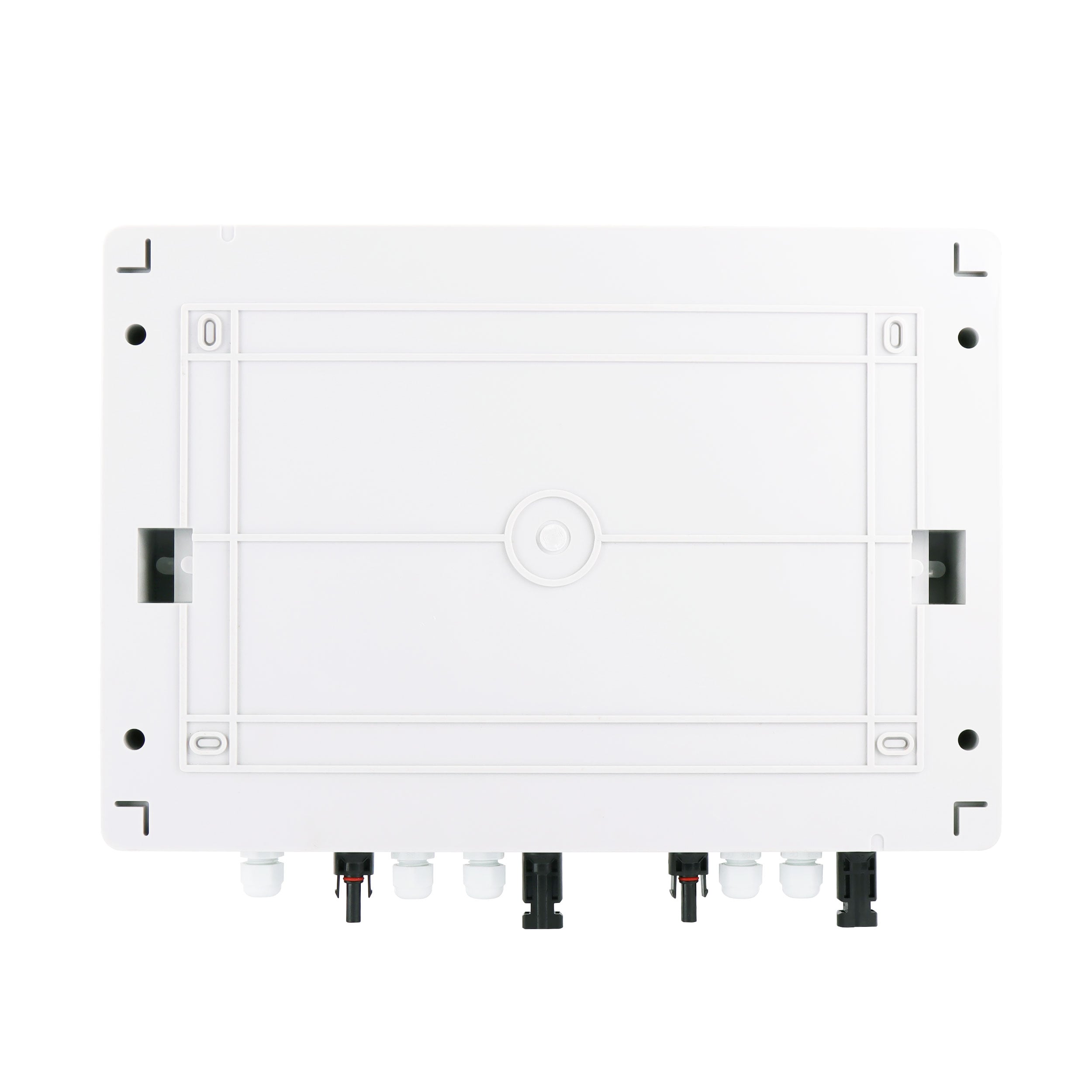

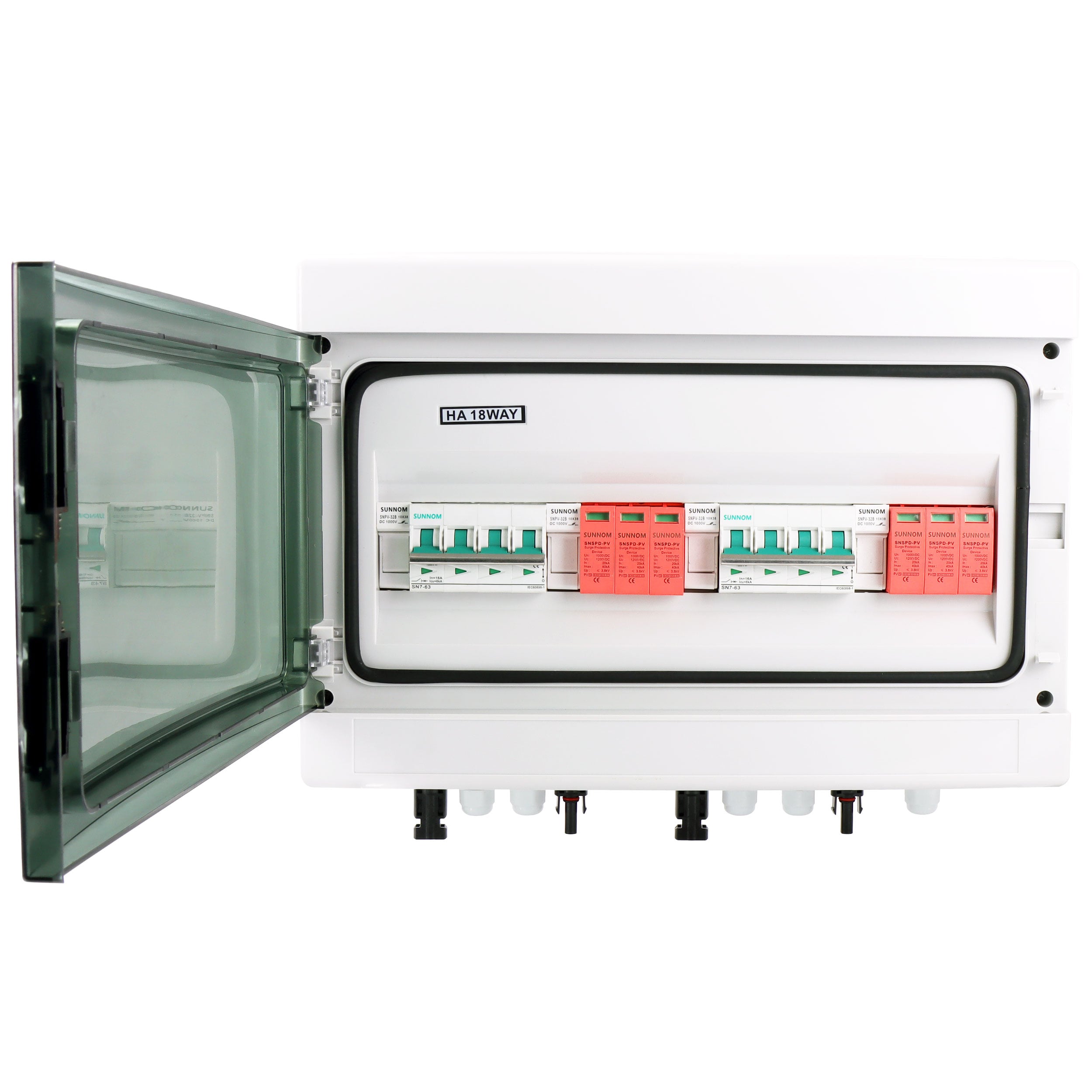

2 IN 2 OUT 1000V Solar PV DC Combiner Box
We export at least one 40-foot cabinet combiner box to foreign countries every month. People who are familiar with us know that worldsunlight is the first choice when buying a combiner box, because all the accessories in the combiner box are produced by us, including solar connector, fuse, and mcb , DC isolation switch，mccb, spd, distribution box, we can produce these at any time, and each product can produce at least 50,000pcs per week, so the delivery time of our combiner boxes is very fast, 10,000 combiner boxes can be delivered within 15 days , because all products are produced by ourselves, the quality of our products can be guaranteed, and our prices are very advantageous.
Description
| Model No | SNDB-PV2/2(1000V) |

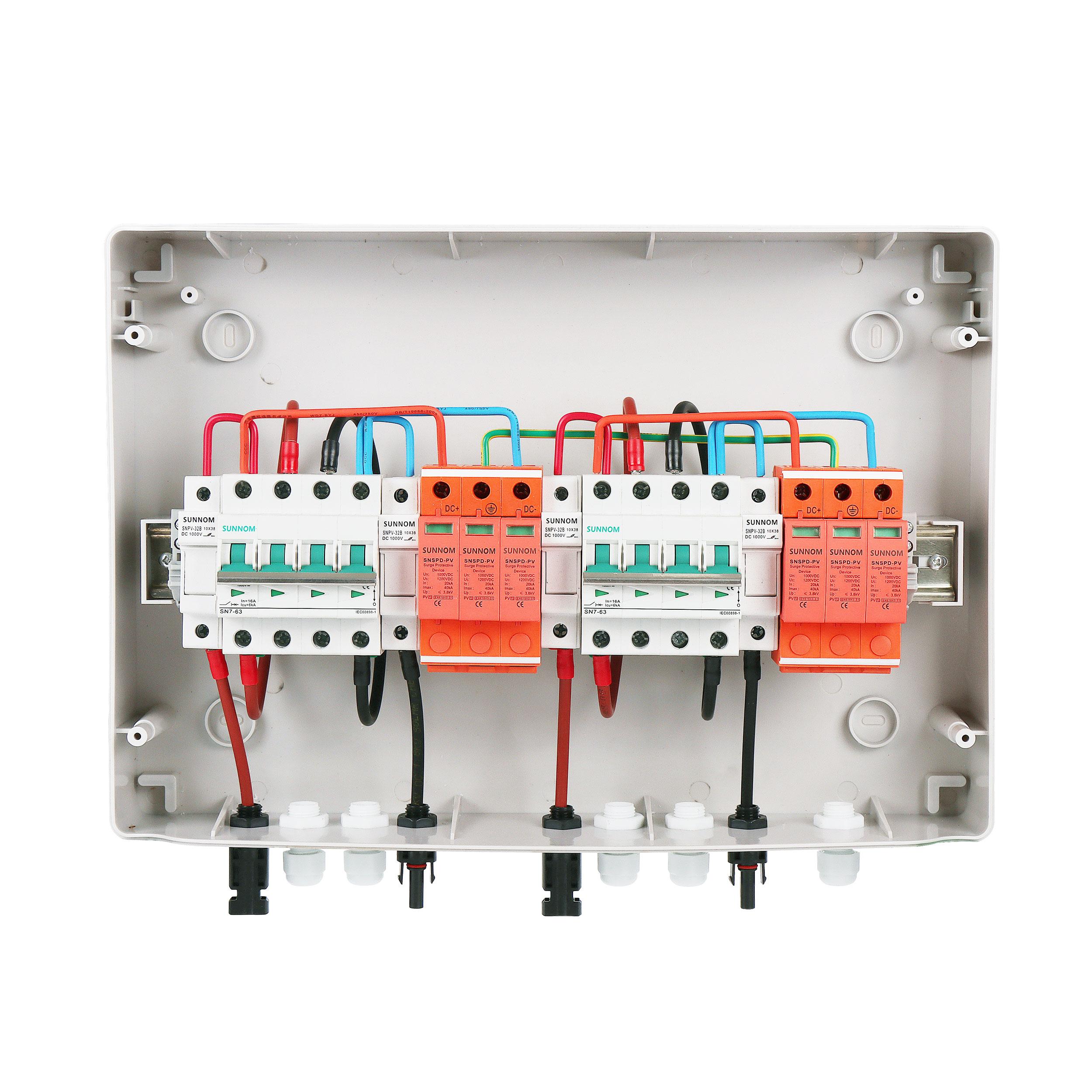

| include | 4 pcs fuse + 2 pcs 4p 1000v mcb +2 pcs 3p 1000v spd +ha distribution box+cable gland |
| Input | 2 strings |
| Output | 2 strings |
| Maximum Voltage | 1000V |
| Maximum Current lnput | 15A |
| Maximum Current Output | 15A |
| Enclosure | SN-HA 18 way |
| Material Type | PC/ABS |
| Degree of Protection | IP65 |
| Degree of Resistance to lmpacts | IK10 |
| Dimension (WxHxD) | 410*285*140mm |

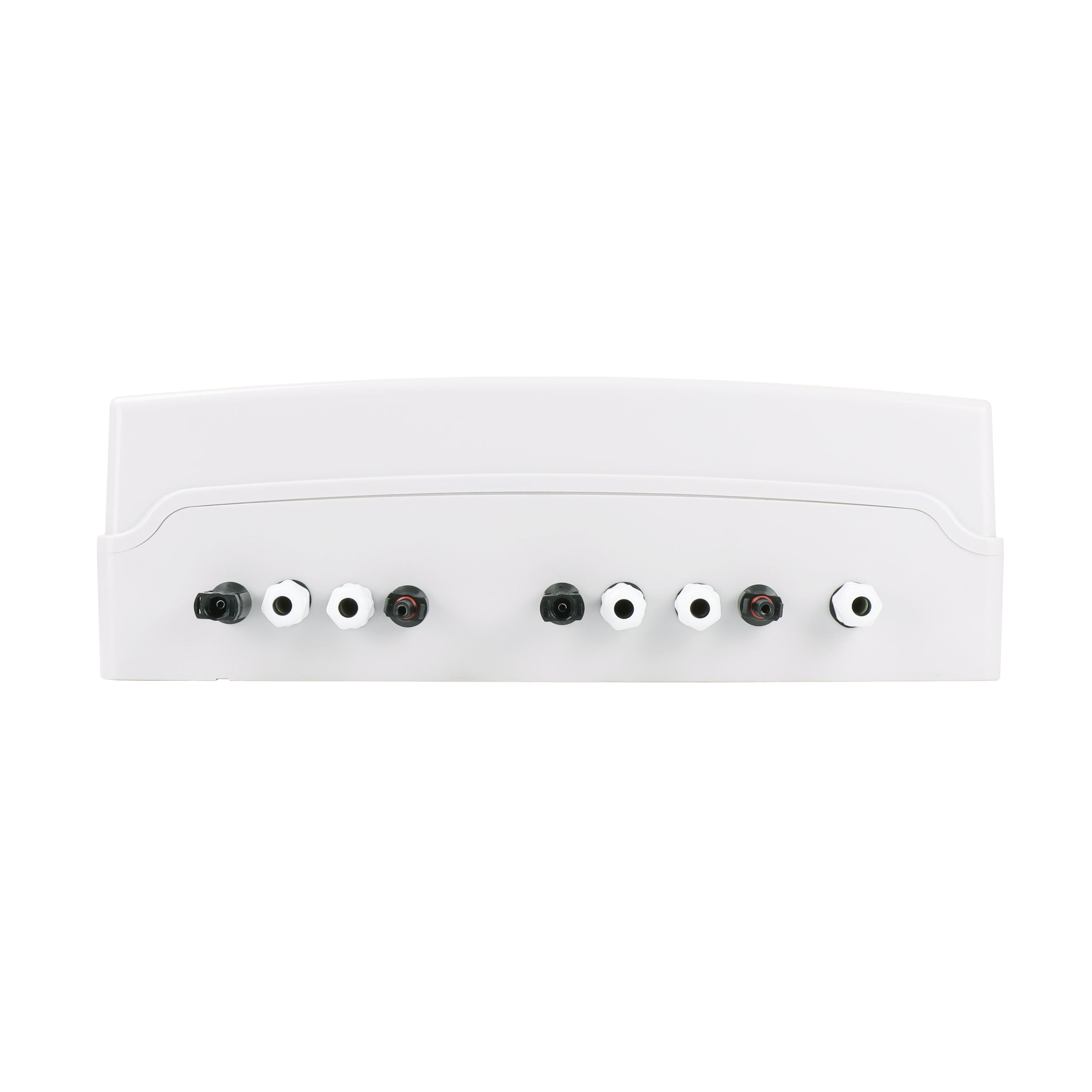

| Cable input Entry | MC4 2.5-6mm2 |
| Output Cable Gland | PG9 2.5-16mm2 |
| Certification | CE |
| Dc Circuit Breaker | SN7-63 |
| Operating voltage | 1000v |
| Rated Current | 63A |
| Standard Compliance with | lEC60947-2 |
| Certification | CE/CE/CB/IEC |
| Poles | 4P |
| DC Surge Arrester | SNSPD-PV |
| Max Operation Voltage(Ucpv) | 1000v |
| Standard Compliance with | EN61643-3 |
| Nominal discharge current | 20kA |
| Maximum discharge current | 40kA |
| Voltage protection level | 3.8KV |
| Poles | 3P |
| Certification | TUV CE |
| DC fuse holder | SNPV-32B |
| Rated Working Voltage | 1000v |
| Fuse Link | 10x38mm LITTEL 15A |
| Certification | CE/CE/CB/IEC |
| Environment | |
| Operating Temperature | -25℃~+55℃ |
| Humidity | 0-95%,no condensationMechanical parameter |
| Altitude | 2000M |
| lnstallation | Wall Mounting |
