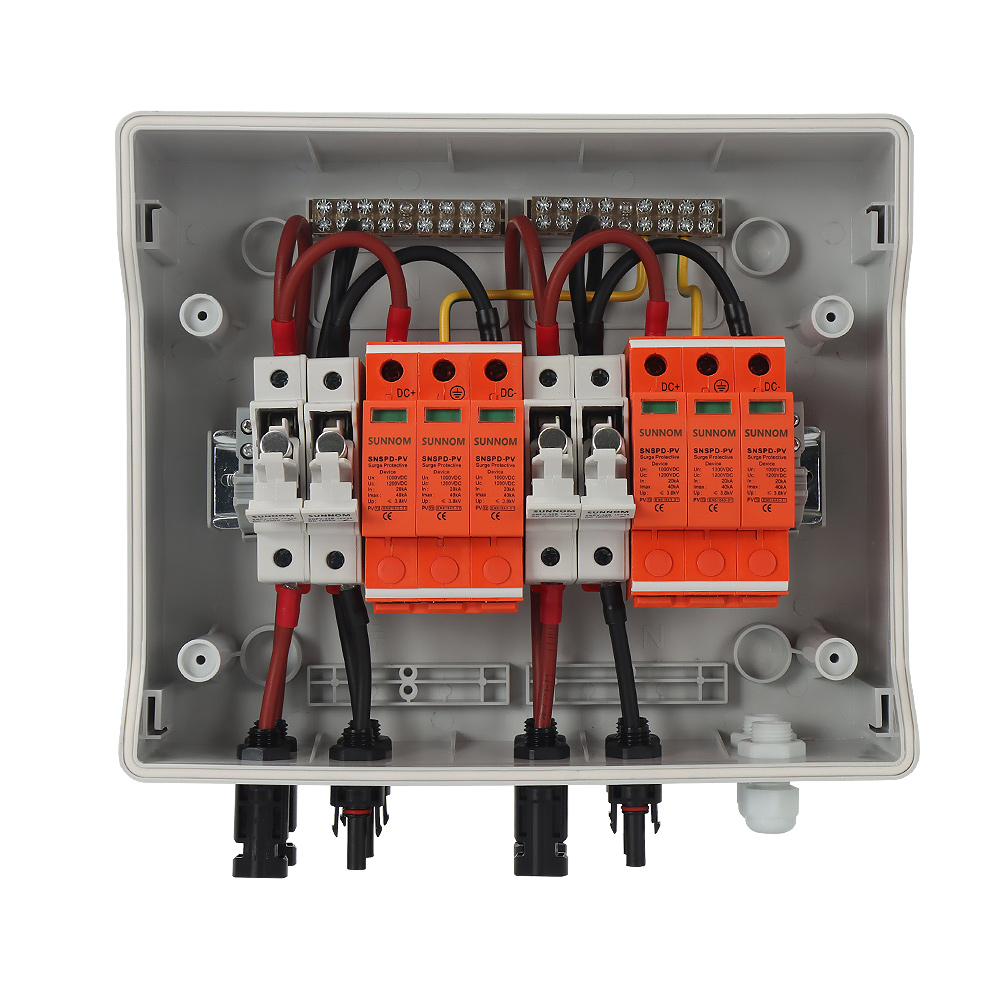

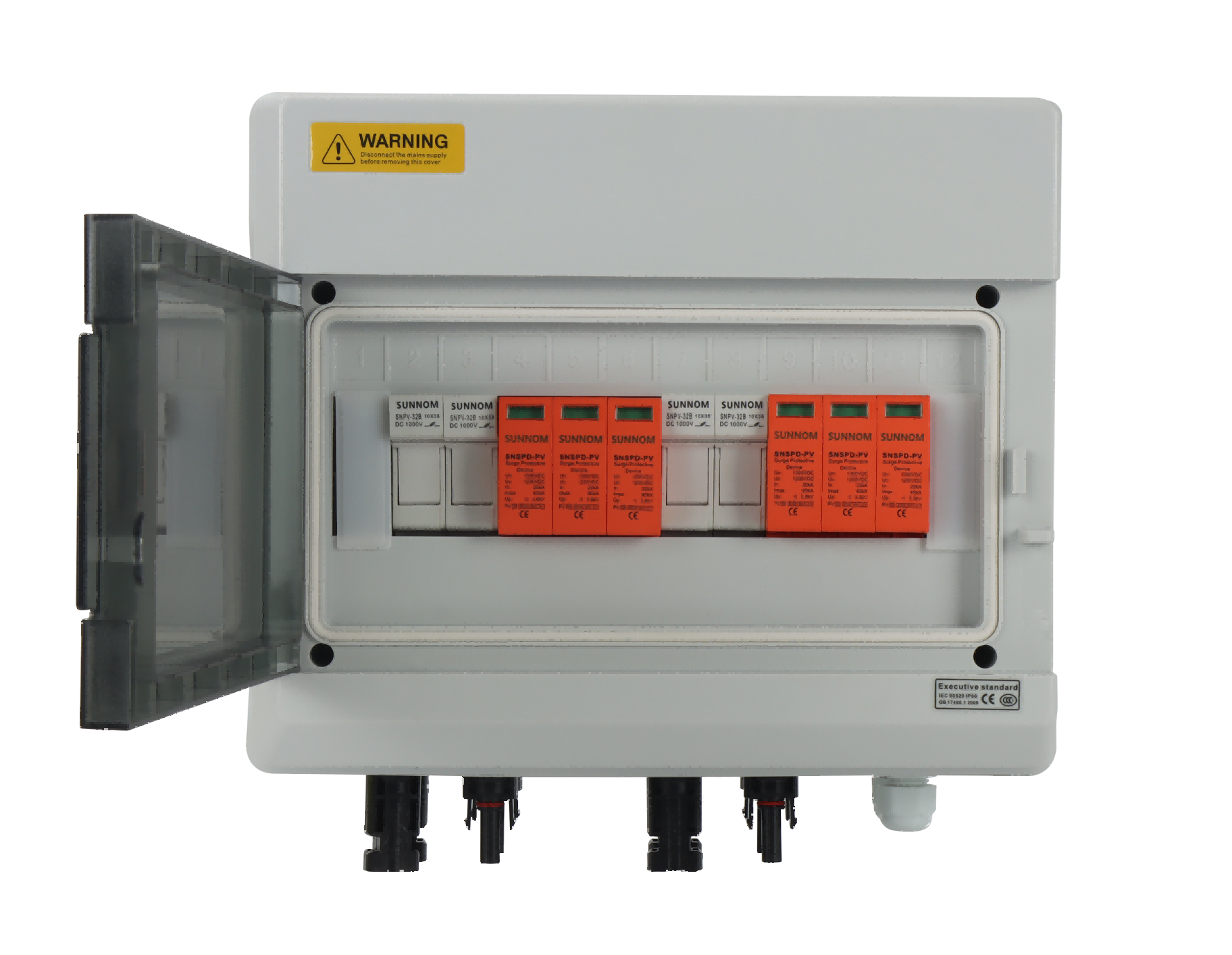

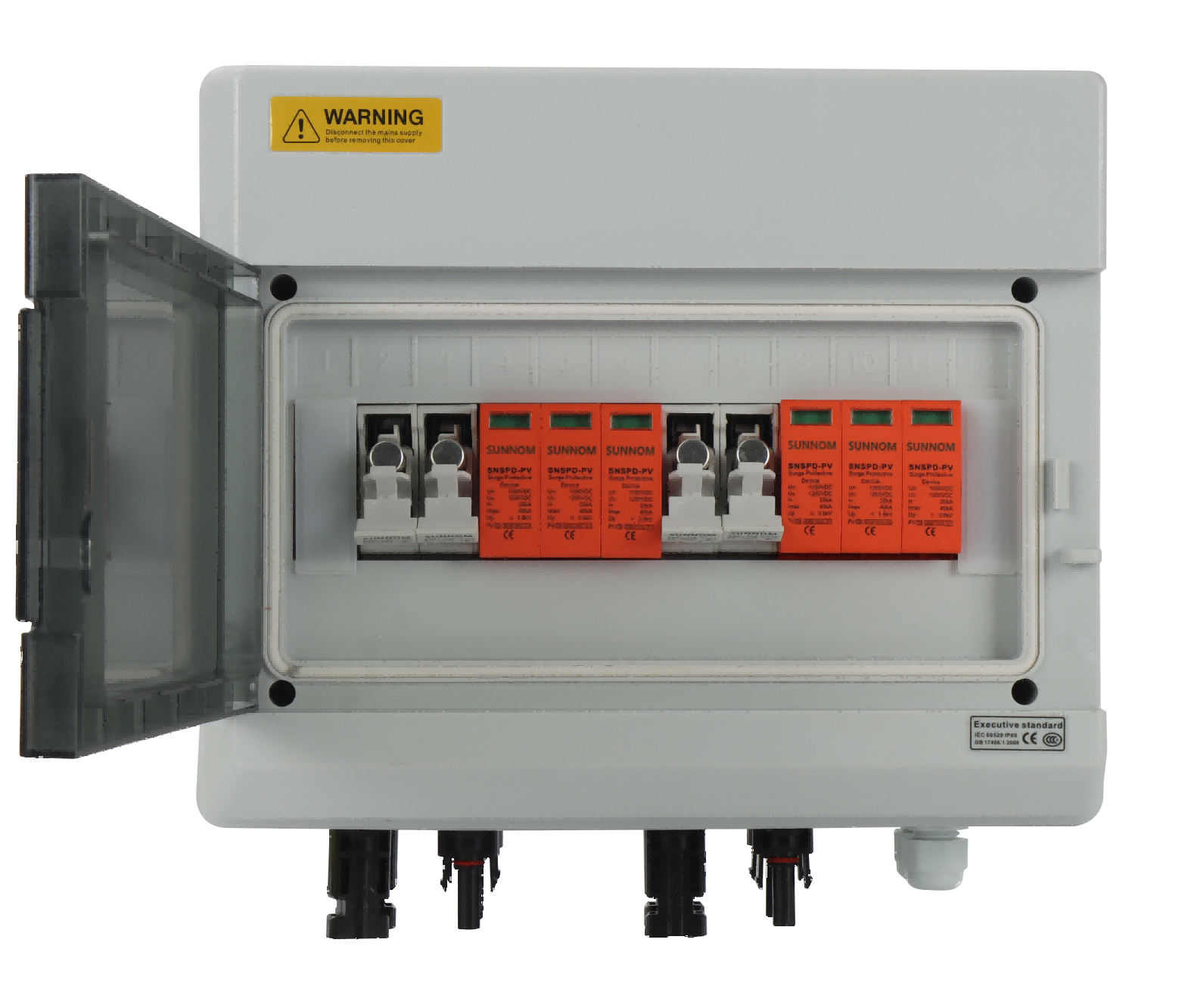

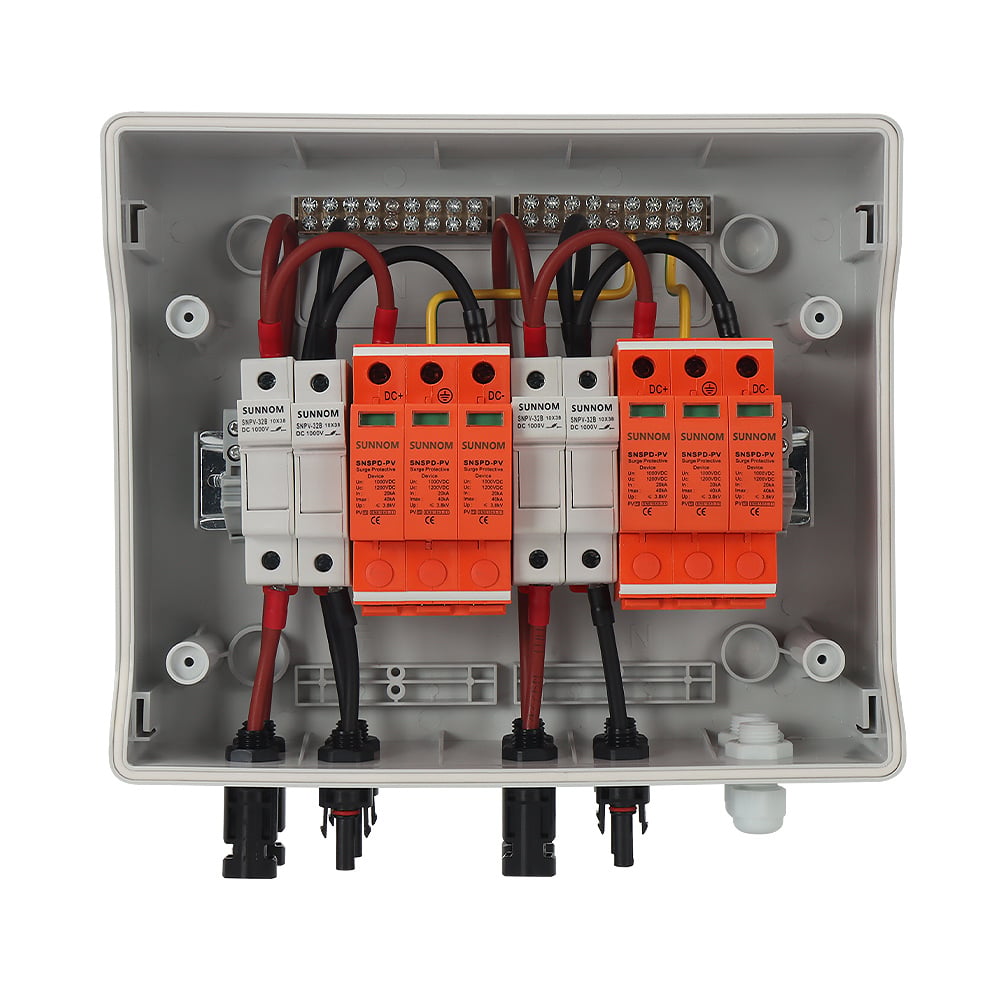

2 IN 2 OUT 1000V Solar PV DC Combiner Box for Germany
We export at least one 40-foot cabinet combiner box to foreign countries every month. People who are familiar with us know that worldsunlight is the first choice when buying a combiner box, because all the accessories in the combiner box are produced by us, including solar connector, fuse, and mcb , DC isolation switch，mccb, spd, distribution box, we can produce these at any time, and each product can produce at least 50,000pcs per week, so the delivery time of our combiner boxes is very fast, 10,000 combiner boxes can be delivered within 15 days , because all products are produced by ourselves, the quality of our products can be guaranteed, and our prices are very advantageous.
Description
| Model No. | SNDB-PV2/2 1000V |
| lnclude | 4 Pcs Fuse + 2 pcs 3p 1000v SPD + SNPN Distribution Box+M4+Cable Gland+ +Wiring |
| lnput | 2 strings |
| output | 2 strings |
| Maximum Voltage | 1000v |
| Max DC Short Circuit current Per lnput (lsc) | 32A |
| Maximum Current Outpu | 32A |
| Enclosure | SNPN-12 WAY |
| Material Type | PC/ABS |
| Degree of Protection | lP65 |
| Degree of Resistance to lmpacts | lK10 |
| Dimension (WxHxD) | 265mm*218mm*110mm |
| Cable input Entry | MC4 2.5-6mm2 |
| output Cable Gland6mm2 | PG13.5 2.5-16mm2 |
| certification | CE |
| DC surge Arrester | SNSPD-PV |
| Max Operation Voltage(Ucpv) | 1000v |
| Standard Compliance with | EN61643-3 |
| Nominal discharge current | 20kA |
| Maximum discharge current | 40kA |
| Voltage protection level | 3.8KV |
| Poles | 3P |
| Certification | TUV CE |
| Dc fuse holder | SNPV-32B |
| Rated Working Voltage | 1000v |
| Fuse Link | 10x38mm 32A |
| certification | TUV CE IEC CB |
| Environment | |
| operating Temperature | -25°℃~+55°℃ |
| Humidity | 0-95%,no condensation Mechanical parameter |
| Altitude | 2000M |
| Installation | wall Mounting |
