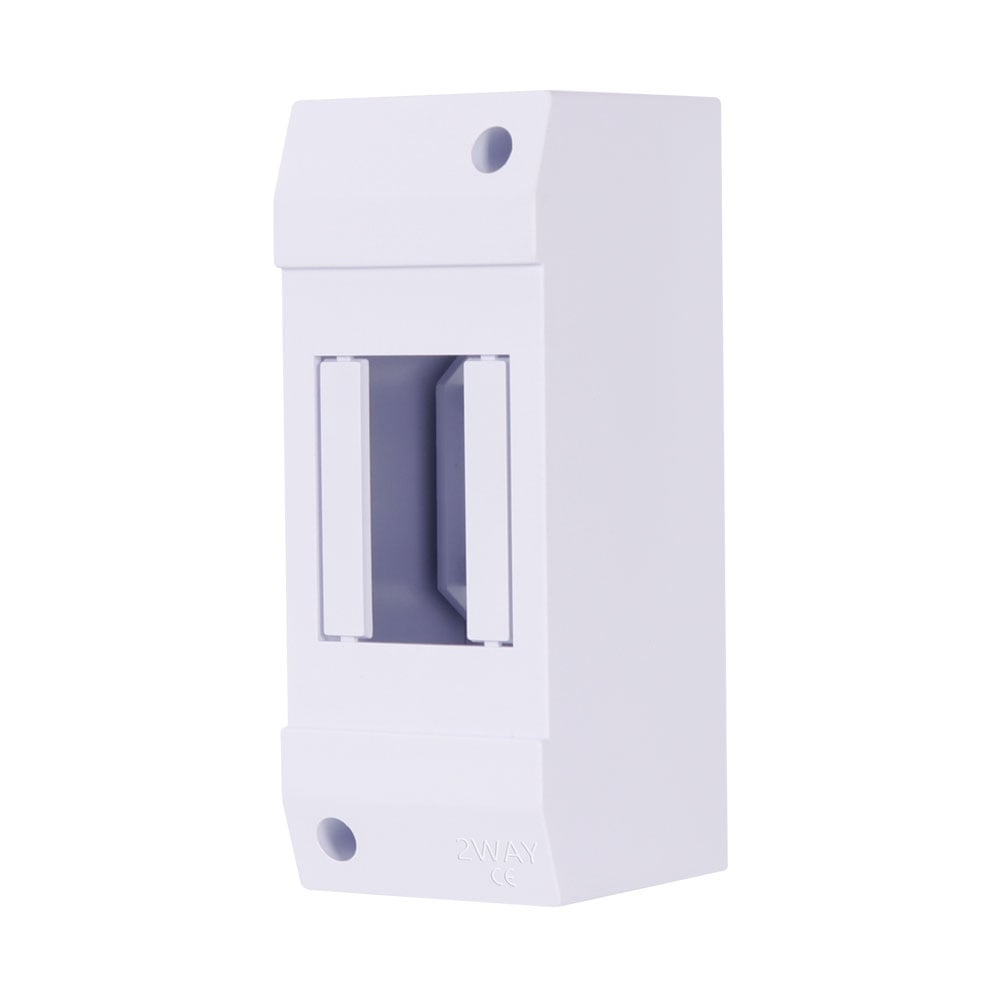

SNHAG IP30 Distribution Box

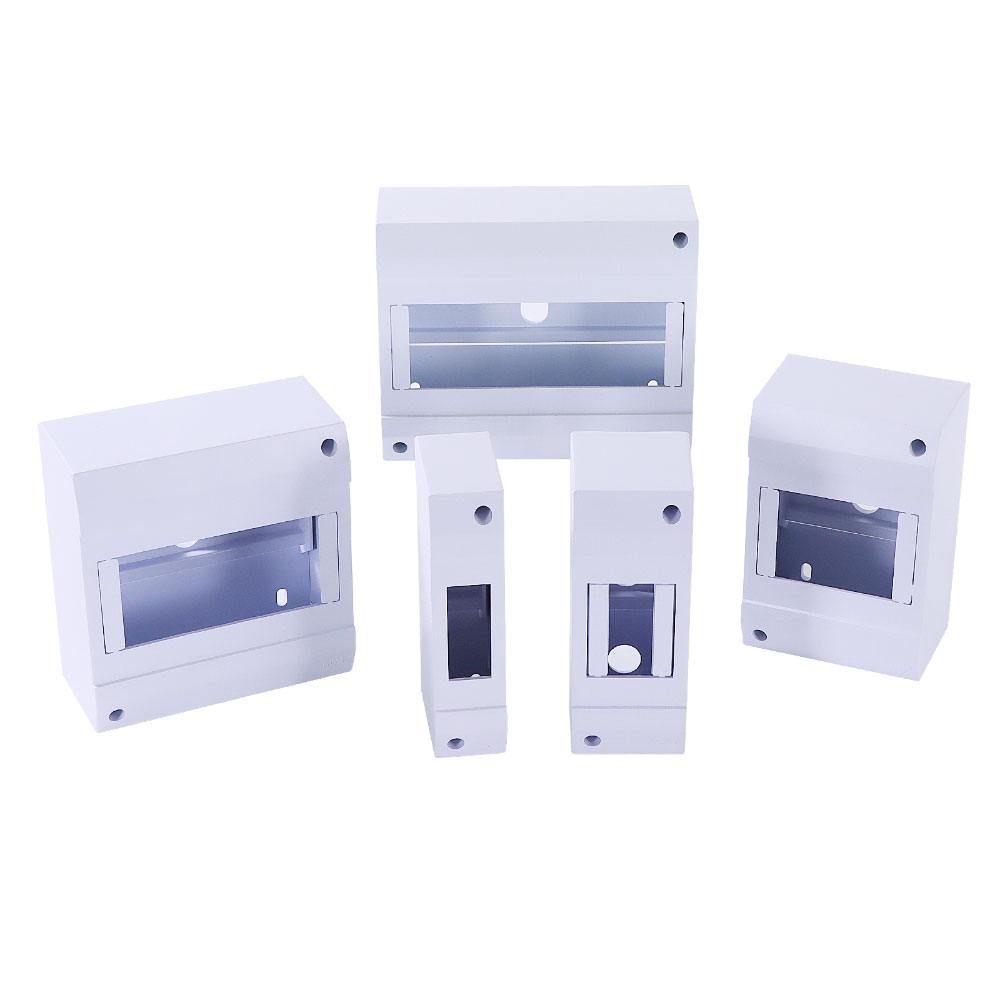

SNHAG series distribution box is a kind of modularized industrial electrical box. Based on the advantages of being easy to install, widely aplied in building electrical distribution system's installation.
Description
| Technical specications | |
| Standard | lEC60439-3 IEC61000 |
| Approval | CE, RoHS, HF test, IK test, ISO9001 |
| Protection grade | IP30 |
| Color of base | White |
| Mounting type | Surface |
| Material | ABS |
| guide | 35MM standard din rail |
| Fire resistence | 650℃/30s |
| Ambient temperature (°C ) | -5~+40, 50% humidity permitted under max +40°C |
| Storage temperature (°C ) | -40-+75 |
| Remark | Conventional is not flame retardant, flame retardant needs to be customized |
| Model | Product's size(mm) | No.of breaker(pole) | Net Weight(kg.) | ||
| L(mm) | W(mm) | H(mm) | |||

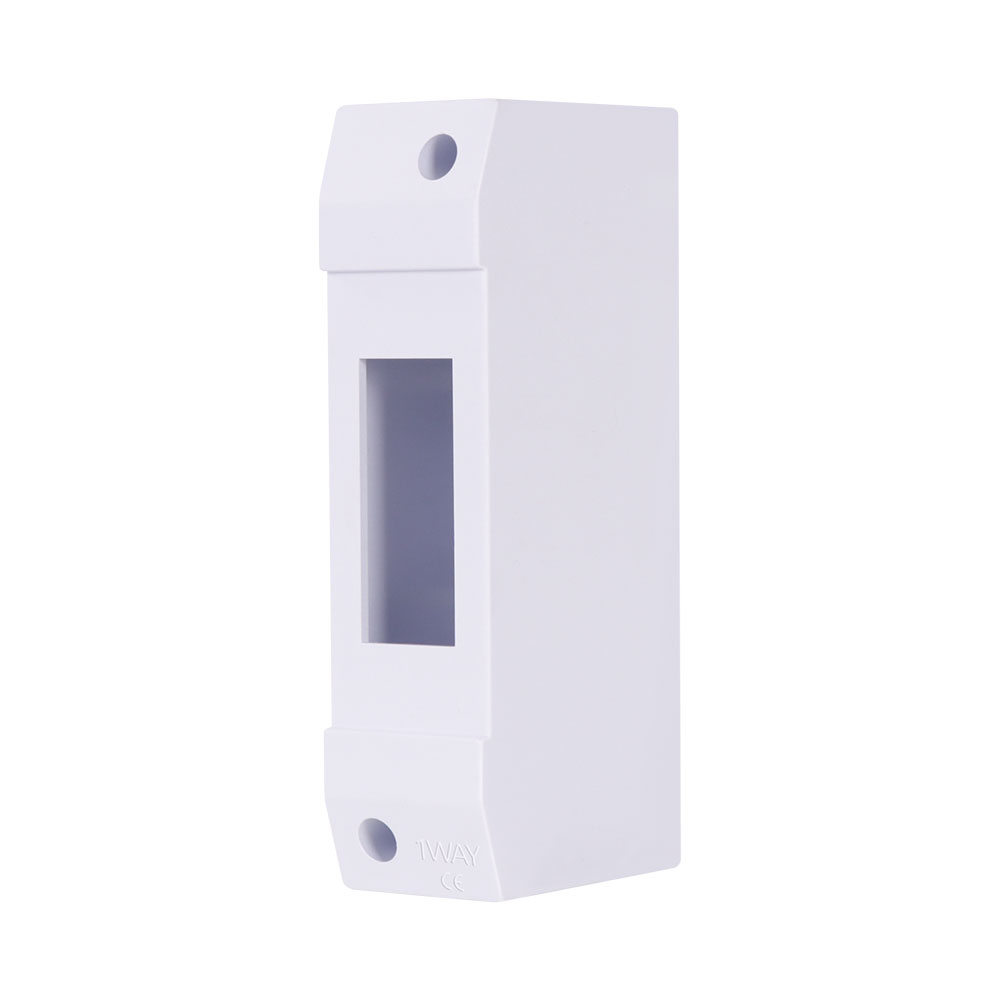

| SNS 1WAY | 33 | 130 | 60 | 1 | 0.06 |
| SNS 2WAY | 51 | 130 | 60 | 2 | 0.08 |

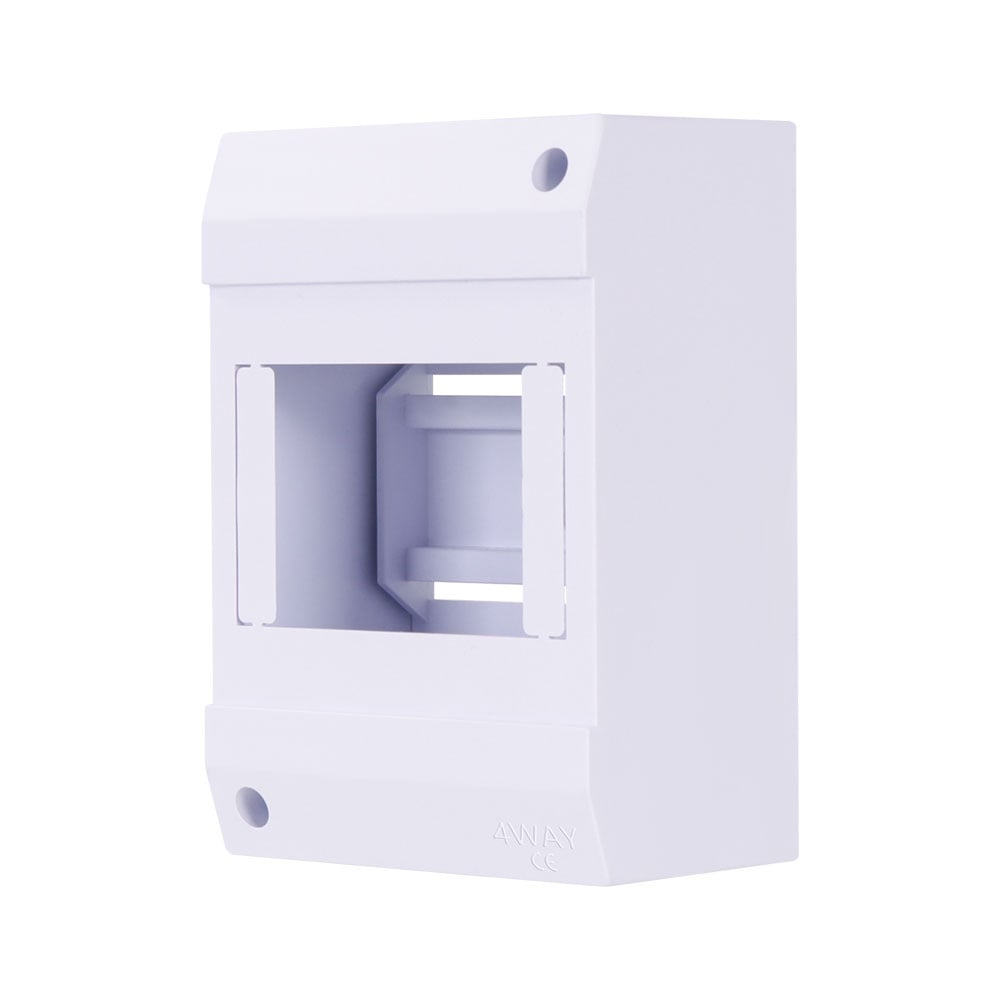

| SNS 4WAY | 87 | 130 | 60 | 4 | 0.10 |

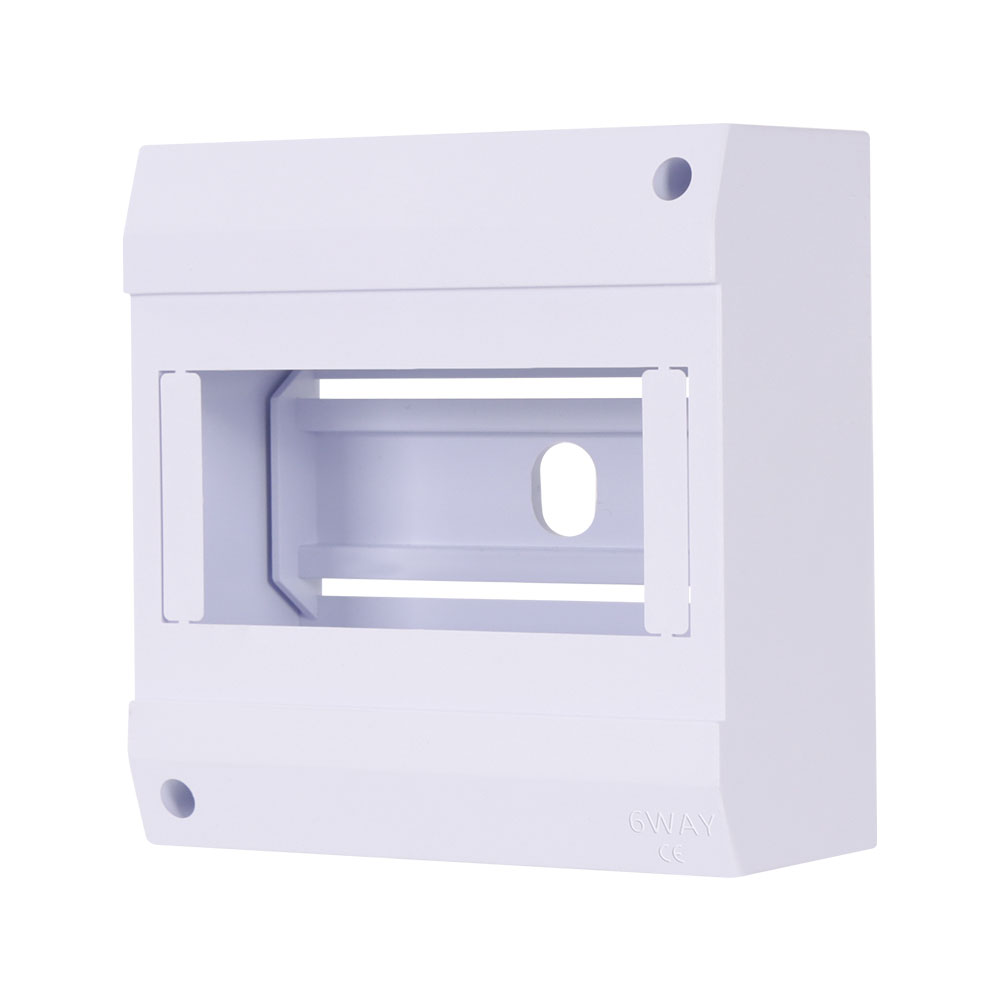

| SNS 6WAY | 124 | 130 | 60 | 6 | 0.13 |

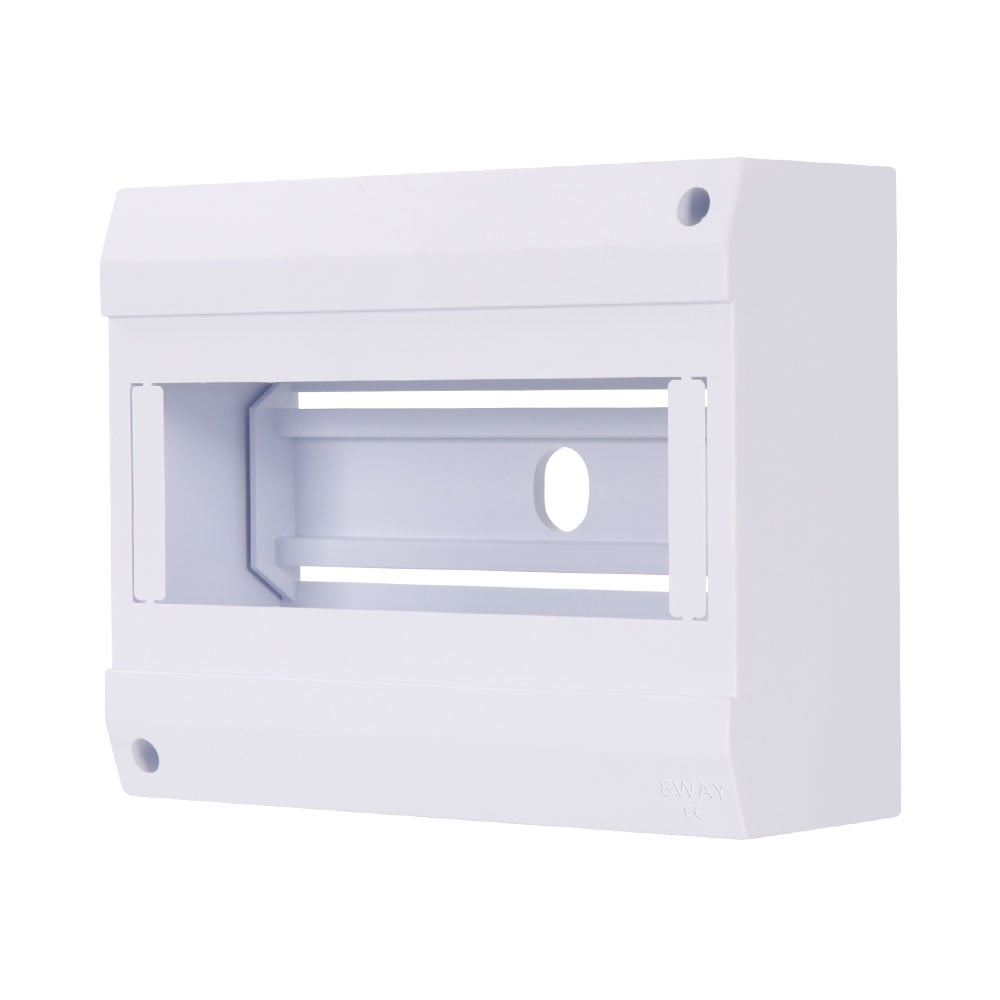

| SNS 8WAY | 160 | 130 | 60 | 8 | 0.16 |
SNHAG economical distribution box is specially designed for small components and non-complex environments. The product is economical and durable.
SNHAG plastic enclosure box can be normally used in an environment with a temperature of -40℃+75℃, and supports flame retardant customization.

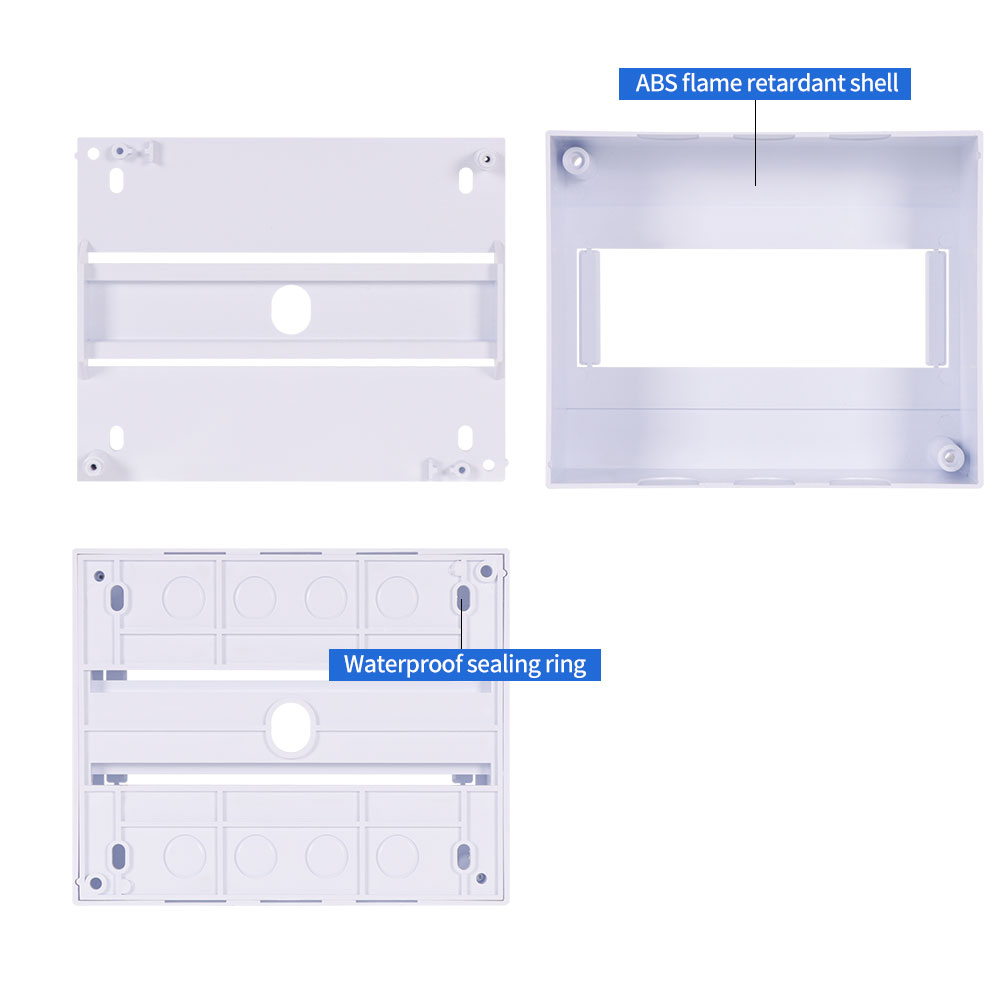

SNHAG IP30 MCB BOX adopts the new ABS engineering plastics, with an internal integrated 35mm standard plastic rail, and is compatible with more than 90% of components on the market. The reserved mounting hole design makes wall-mounting installation easy and quick.
SN-HAG distribution box ABS body PC cover New material, long life, no odor, hard, high elasticity, high toughness, corrosion resistance, aging resistance, compared with the recycled products on the market, which are fragile, easy to crack, short life, and have odor, our products have excellent feedback in the market in terms of service life and safety.
Our products comply with international standards such as IEC-493-1 and have CE, ISO9001 and other certifications. Our products are not afraid of any testing. When purchasing in large quantities, if any product test reports and certifications are required, we can add them!
SUNNOM is China's leading manufacturer of distribution boxes. Its product line covers 13 series and 150 models to meet the power distribution needs of all scenarios. IP30 economic box (HAG): general indoor circuit protection. IP40 standard box (MS/MF): home main line switch control. IP65 dustproof and waterproof junction box (RA/RT), solar energy-specific: IP65 waterproof box (HA/HT/PN), suitable for photovoltaic module assembly junction box. IP66 high-strength junction box (KG/BG/MG), IP67 sealed distribution box (AG/DG). Injection molding → assembly → testing → packaging → delivery The whole process takes place in-house, quality is guaranteed, two-year warranty, 300+ sets of precision molds + 31 fully automatic injection molding machines, monthly production capacity exceeds 100,000 units, to ensure stable delivery.
