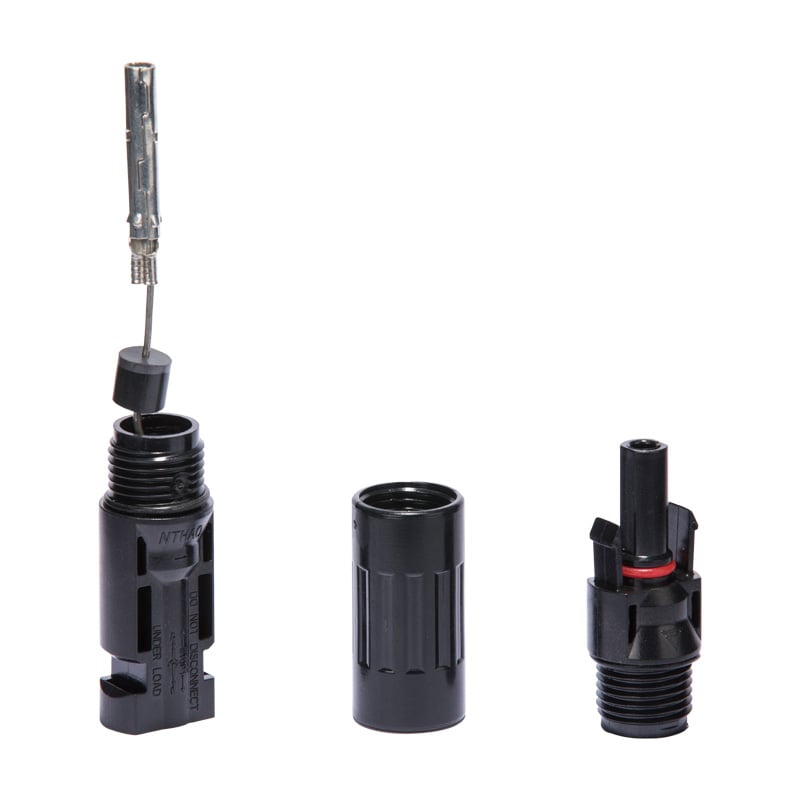

1000V Diode Solar Connector
Worldsunlight solar diode connector is specially developed for solar energy system. The product can realize hot spot effect protection. When the solar panel is blocked by shadow, the diode can realize automatic conduction, providing a circuitous path for the system current to avoid local overheating and burning of components. The product can also prevent energy loss caused by reverse current flow, improve the power generation efficiency of the whole system, and can improve the power generation efficiency by up to 8%, and prevent reverse current flow from damaging solar panels.
Description
| Rated Current | 10A 15A 20A 30A |
| Rated Voltage | 1000V DC |
| Test Voltage | 8000V(50Hz，1min) |
| Contact Resistance | ＜ImΩ |
| Contact Material | Copper, Tin-plated |
| Insulation Material | PPO/PC |
| Degree Of Protection | IP67 |
| Flame Class | UL94-VO |
| Safety Class | Ⅱ |
| Temperature Range | -40℃~+85℃ |
| Pin Dimensions | Φ4mm |

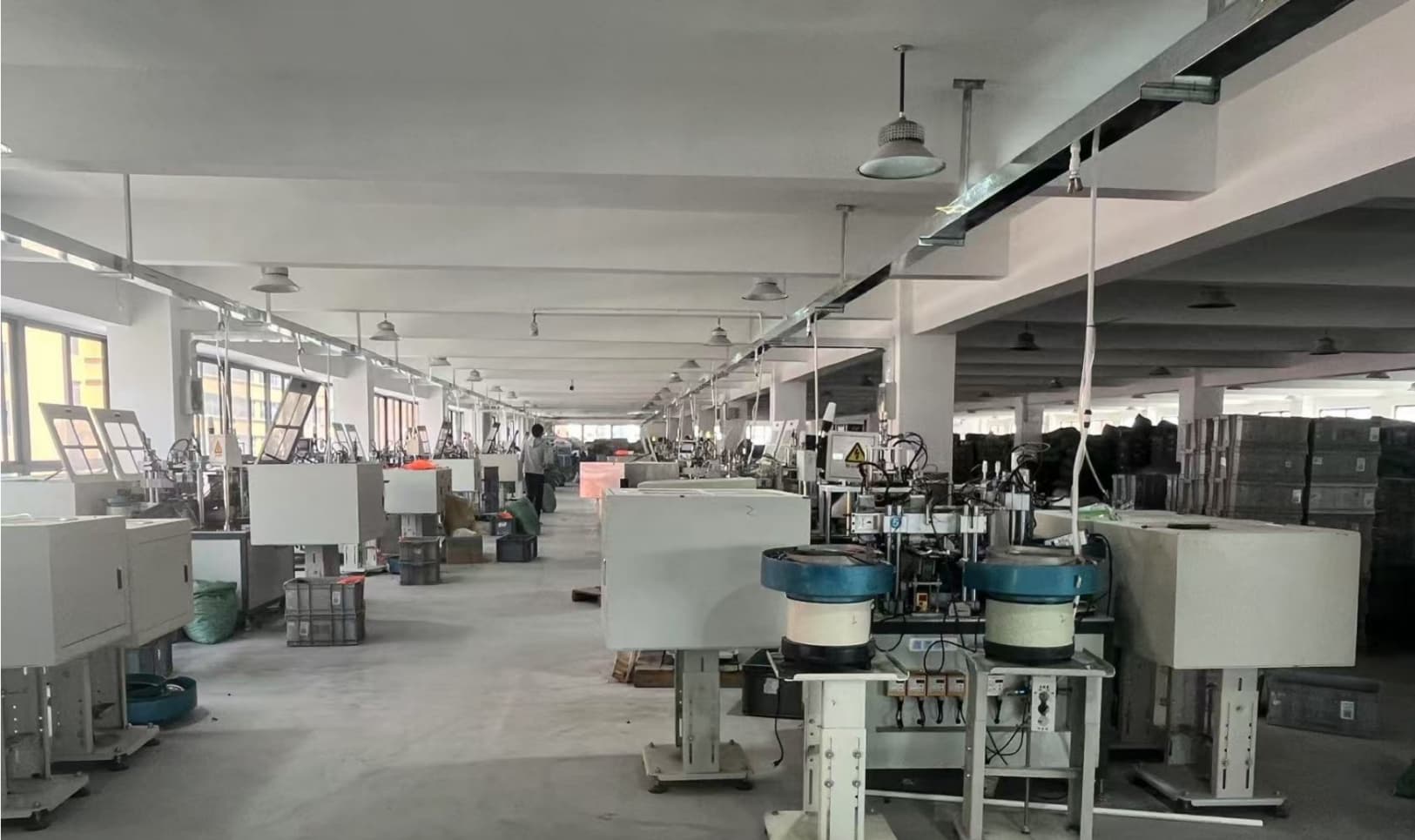

We have 15 solar connector automatic assembly machines and 12 injection molding machines dedicated to connector injection molding. We can produce 300,000 solar connectors per day. 300,000 pieces can be shipped within 3 days, and 500,000 pieces can be shipped within 7 days.

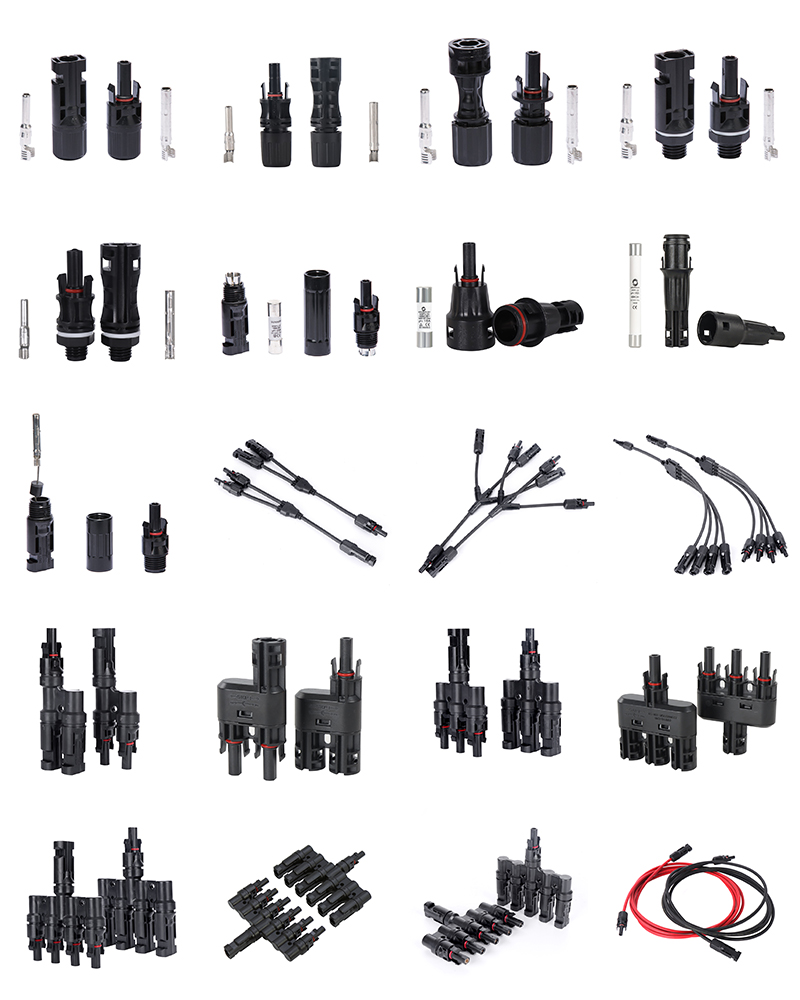

Not only do we have a large production capacity and high cost-effectiveness for our 1000V solar connectors, but we also have high cost-effectiveness and high production capacity for other products, because we have developed a full range of solar connector molds that can cover the entire chain of production processes for various styles, including board-mounted connectors, fuse connectors, diode solar connectors, Y-type and T-type solar connectors, and all cover 1000V and 1500V voltage products.
