SNBG IP66 Distribution Box
Made of strengthening ABS and PC material, the enclosure has beautiful appearance and high plasticity. SNBG series junction box is suitable for terminal boxes, distribution panels,instrument boxes, electrical equipment boxes and control boxes.
Description
| Technical specications | ||||
| Standard | lEC60529 IEC60670 | |||
| Approval | CE, RoHS, HF test, IK test, ISO9001 | |||
| Protection grade | IP66 | |||
| Color of base | grey | |||
| The color of cover | Transparent or Grey | |||
| Material | ABS Body PC Cover，ABS Body ABS Cover | |||
| Ambient temperature (°C ) | -5~+40, max.95% humidity | |||
| Storage temperature (°C ) | -40-+75 | |||

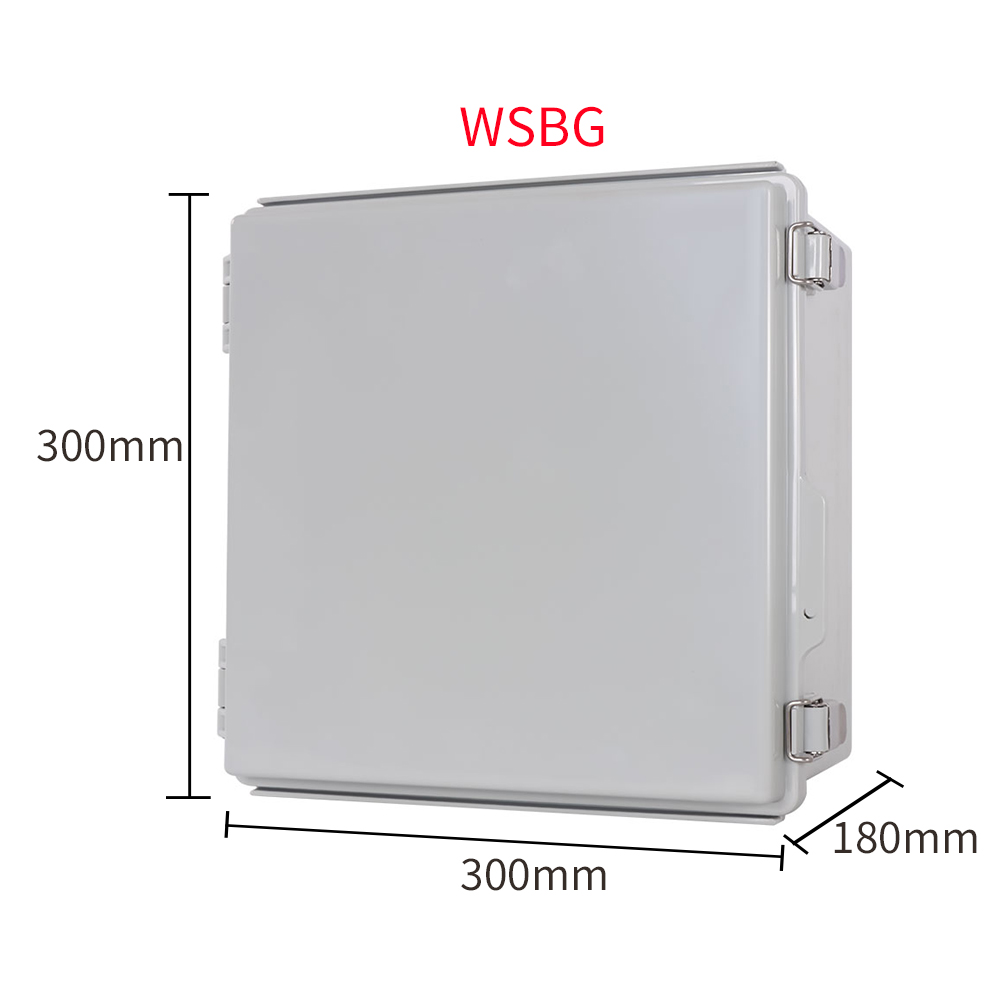

| Model | Product's size(mm) | Net Weight(kg.) | ||
| L(mm) | W(mm) | H(mm) | ||
| SN-BG 120x90x70 | 120 | 90 | 70 | 0.17 |
| SN-BG 150x100x70 | 150 | 100 | 70 | 0.23 |
| SN-BG 150x150x90 | 150 | 150 | 90 | 0.34 |
| SN-BG 210x110x75 | 210 | 110 | 75 | 0.33 |
| SN-BG 210x160x100 | 210 | 160 | 100 | 0.45 |
| SN-BG 220x170x110 | 220 | 170 | 110 | 0.54 |
| SN-BG 260x110x75 | 260 | 110 | 75 | 0.38 |
| SN-BG 260x160x100 | 260 | 160 | 100 | 0.54 |
| SN-BG 280x190x140 | 280 | 190 | 140 | 0.78 |
| SN-BG 300x200x130 | 300 | 200 | 130 | 0.82 |
| SN-BG 300x300x180 | 300 | 300 | 180 | 1.30 |
| SN-BG 350x250x150 | 350 | 250 | 150 | 1.15 |
| SN-BG 380x280x130 | 380 | 280 | 130 | 1.28 |
| SN-BG 400x300x180 | 400 | 300 | 180 | 1.68 |
| SN-BG 450x350x200 | 450 | 350 | 200 | 2.53 |
| SN-BG 500x400x200 | 500 | 400 | 200 | 2.90 |
| SN-BG 630x530x250 | 630 | 530 | 250 | 5.23 |
The protection level of SNBG DB BOX is IP66, waterproof, dustproof, windproof and rainproof, and can be used indoors and outdoors.

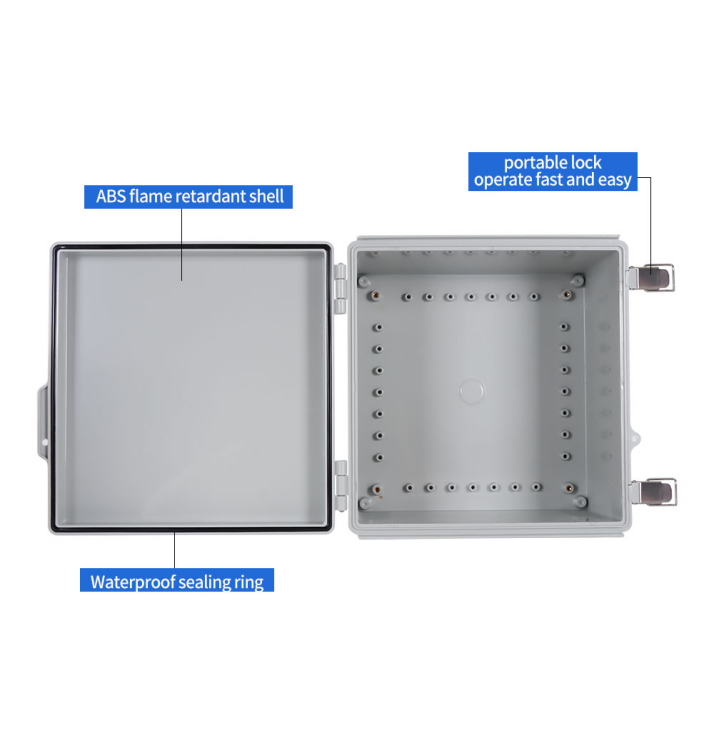

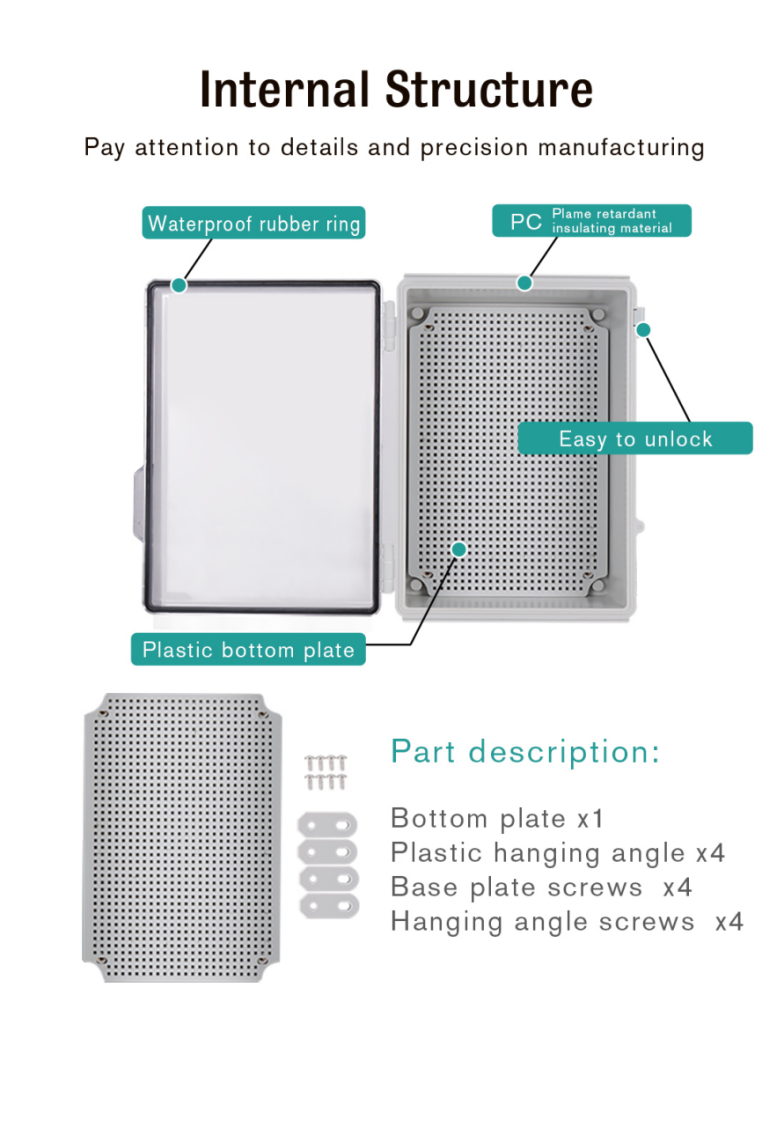

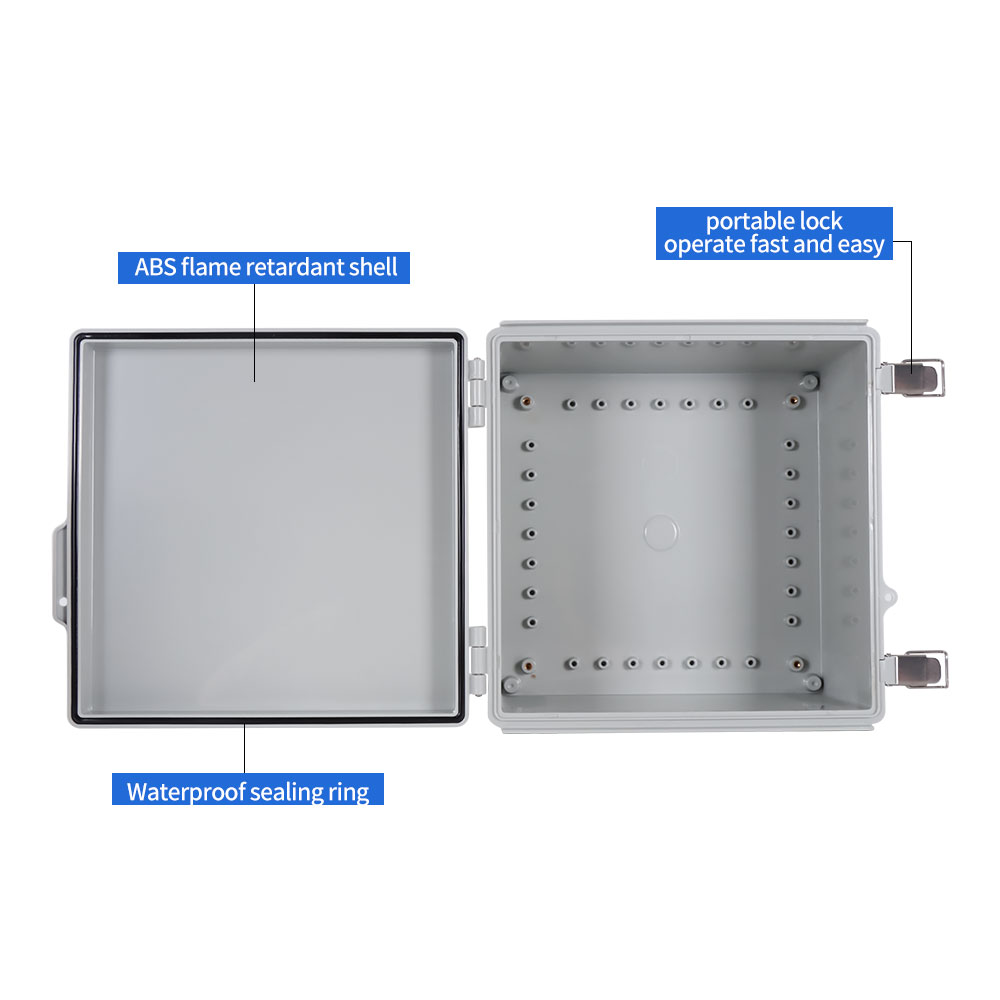

The sealing ring of SNBG IP66 distribution box is made of high-strength sealing ring made of polyvinyl chloride glue. The sealing ring and PC cover fit tightly together, with super waterproof ability, no worries about storms and rainstorms. The cover of the product can also choose PC transparent window cover, which can monitor the working conditions of internal components at any time. The product adopts iron buckle design, which is firmly buckled and easy to operate. Buy the product and get 1 Bottom plate, 4 Plastic hanging angle, 4 Base plate screws x4, and 4 Hanging angle screws.
SNBG plastic enclosure box can be normally used in an environment with a temperature of -40℃+75℃, and supports flame retardant customization.
SNBG IP66 waterproof plastic distribution box uses new ABS material. When choosing a transparent cover product, the transparent cover is made of new PC material, and the product can be selected with or without a bottom plate.
SNBG distribution box ABS body PC cover New material, long life, no odor, hard, high elasticity, high toughness, corrosion resistance, aging resistance, compared with the recycled products on the market, which are fragile, easy to crack, short life, and have odor, our products have excellent feedback in the market in terms of service life and safety.

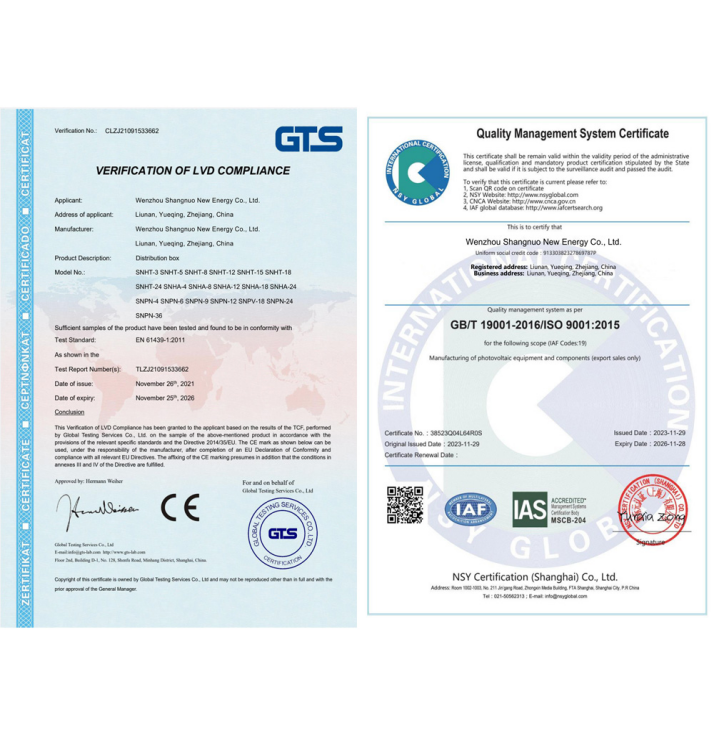

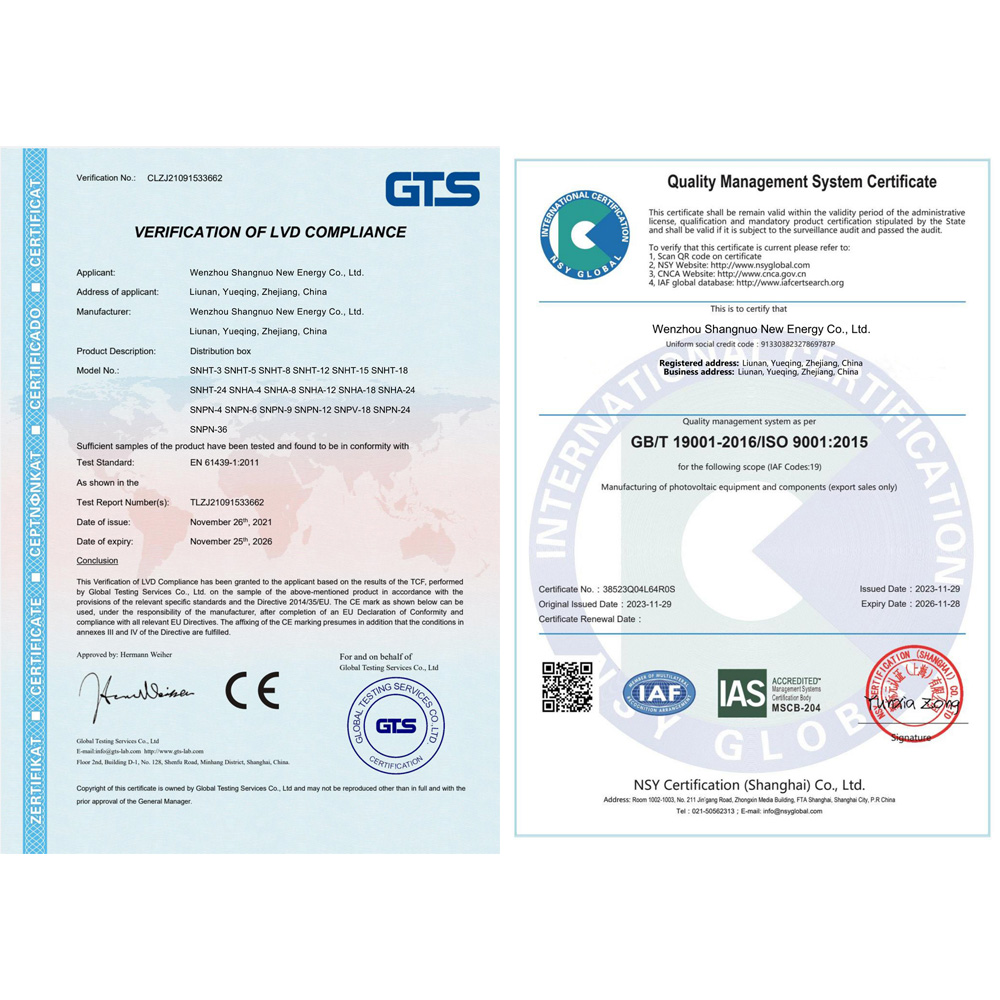

Our products comply with international standards such as IEC-493-1 and have CE, ISO9001 and other certifications. Our products are not afraid of any testing. When purchasing in large quantities, if any product test reports and certifications are required, we can add them!
SUNNOM is China's leading manufacturer of distribution boxes. Its product line covers 13 series and 150 models to meet the power distribution needs of all scenarios. IP30 economic box (HAG): general indoor circuit protection. IP40 standard box (MS/MF): home main line switch control. IP65 dustproof and waterproof junction box (RA/RT), solar energy-specific: IP65 waterproof box (HA/HT/PN), suitable for photovoltaic module assembly junction box. IP66 high-strength junction box (KG/BG/MG), IP67 sealed distribution box (AG/DG). Injection molding → assembly → testing → packaging → delivery The whole process takes place in-house, quality is guaranteed, two-year warranty, 300+ sets of precision molds + 31 fully automatic injection molding machines, monthly production capacity exceeds 100,000 units, to ensure stable delivery.
