SNHT IP65 Distribution Box
SNHT series distribution boxes comply with IEC-493-1 standards. The base is made of high-strength ABS engineering new material, and the transparent window is made of PC new material, which is impact-resistant, corrosion-resistant, and UV-resistant. IP65 waterproof and dustproof grade, no fear of wind, rain, and dust. Perfectly suitable for MCB (miniature circuit breakers), fuses, terminal blocks, and other electrical components. Beautiful and durable, safe and reliable, widely used in various places such as factories, buildings, residences, shopping centers, solar energy systems, etc.
Description
| Model | Product's size(mm) | No.of breaker(pole) | Net Weight(kg.) | Qty/Carton | Weight/Carton(KG) | Carton Dimenstion(CM) |
| SNHT-2 | 50*116*95 | 2 | 0.15 | 100 | 15.3 | 56*28*48 |
| SNHT-3 | 80*160*95 | 3 | 0.3 | 50 | 15 | 44*35*54 |
| SNHT-5 | 115*155*90 | 5 | 0.34 | 40 | 15.2 | 50*34*51 |
| SNHT-8 | 195*150*90 | 8 | 0.53 | 30 | 16.9 | 50*43*49.5 |
| SNHT-12 | 250*195*110 | 12 | 0.84 | 20 | 18 | 57*41.5*53.5 |
| SNHT-15 | 305*195*110 | 15 | 0.9 | 15 | 15.2 | 59*32.5*63.5 |
| SNHT-18 | 360*195*110 | 18 | 1.07 | 15 | 19.4 | 58*38*63 |
| SNHT-24 | 270*353*110 | 24 | 1.35 | 10 | 15.8 | 60*38*58.5 |
The protection level of SNHT DB BOX is IP65, waterproof, dustproof, windproof and rainproof, and can be used indoors and outdoors.

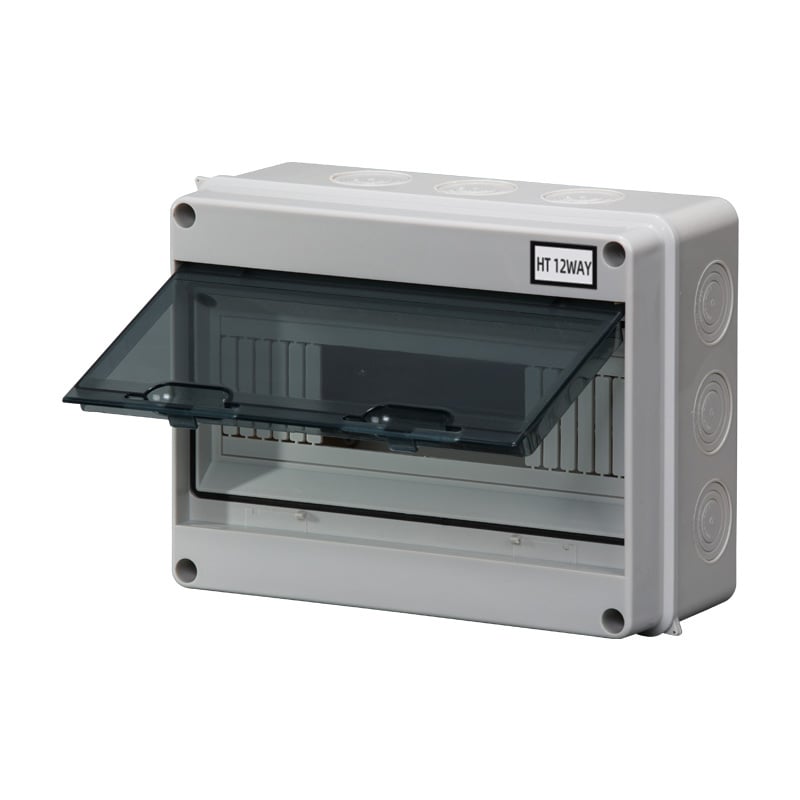

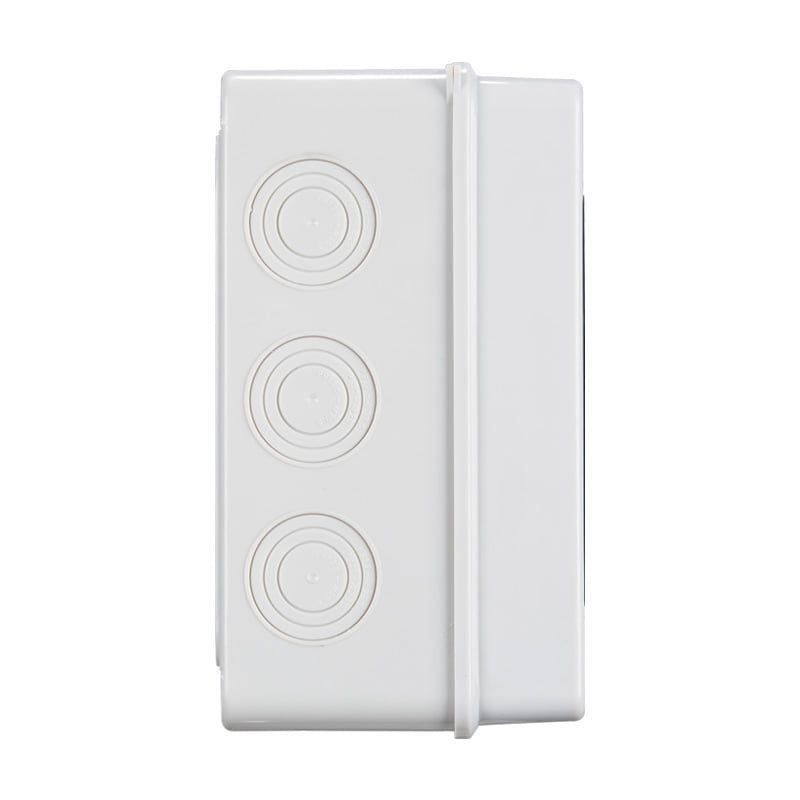

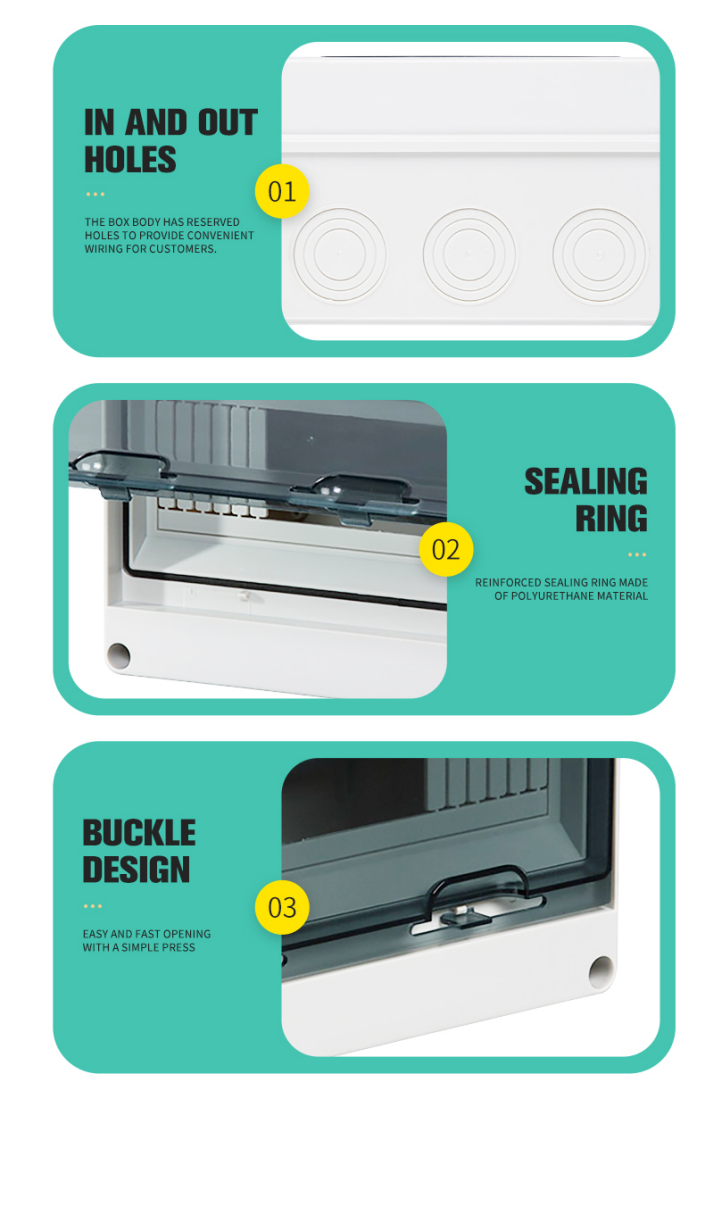

Holes are reserved on the SNHT MCB BOX body to facilitate wiring and wiring. The box has a high-strength sealing ring made of polyvinyl chloride glue, which fits tightly with the PC cover and has strong waterproof ability. The PC transparent window can monitor the working conditions of the internal components at any time. The product adopts a buckle design, which is simple to operate and easy to use.

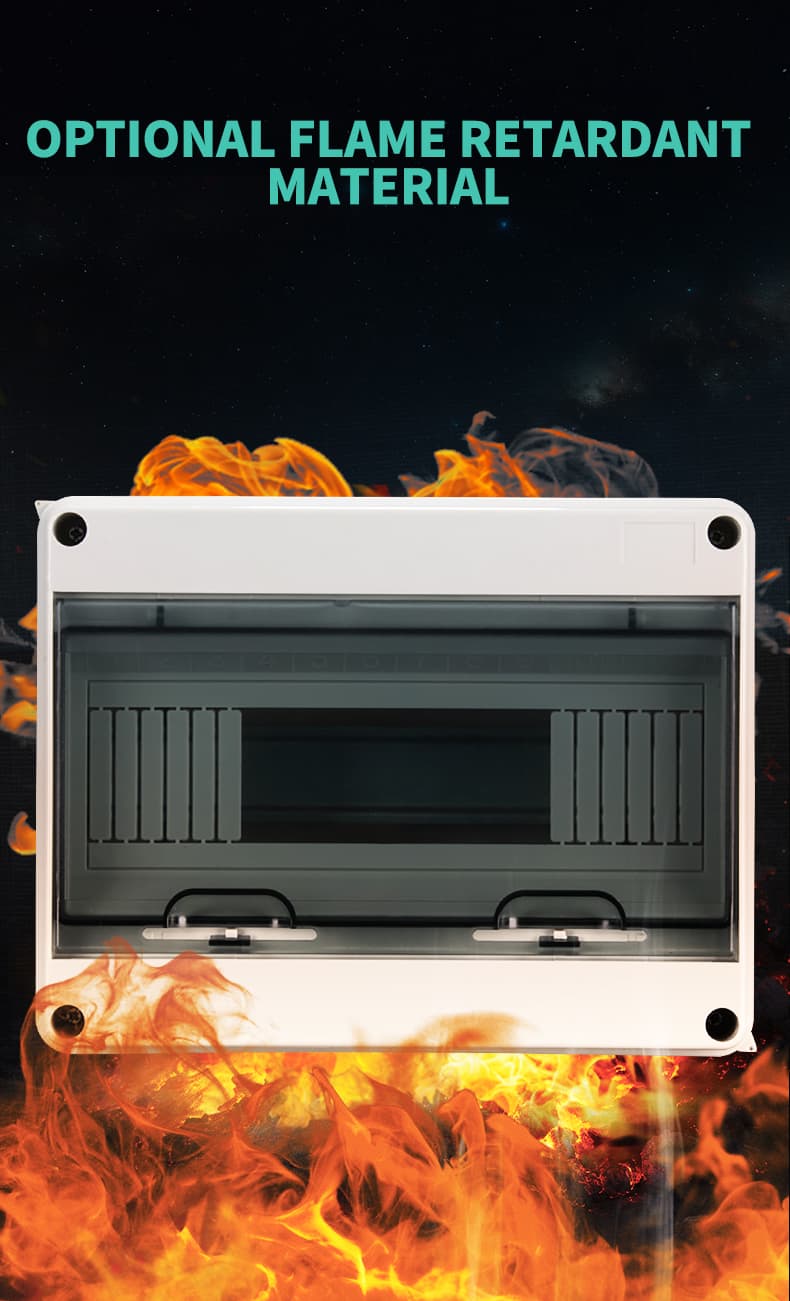

SNHT plastic enclosure box can be normally used in an environment with a temperature of -40℃+75℃, and supports flame retardant customization.

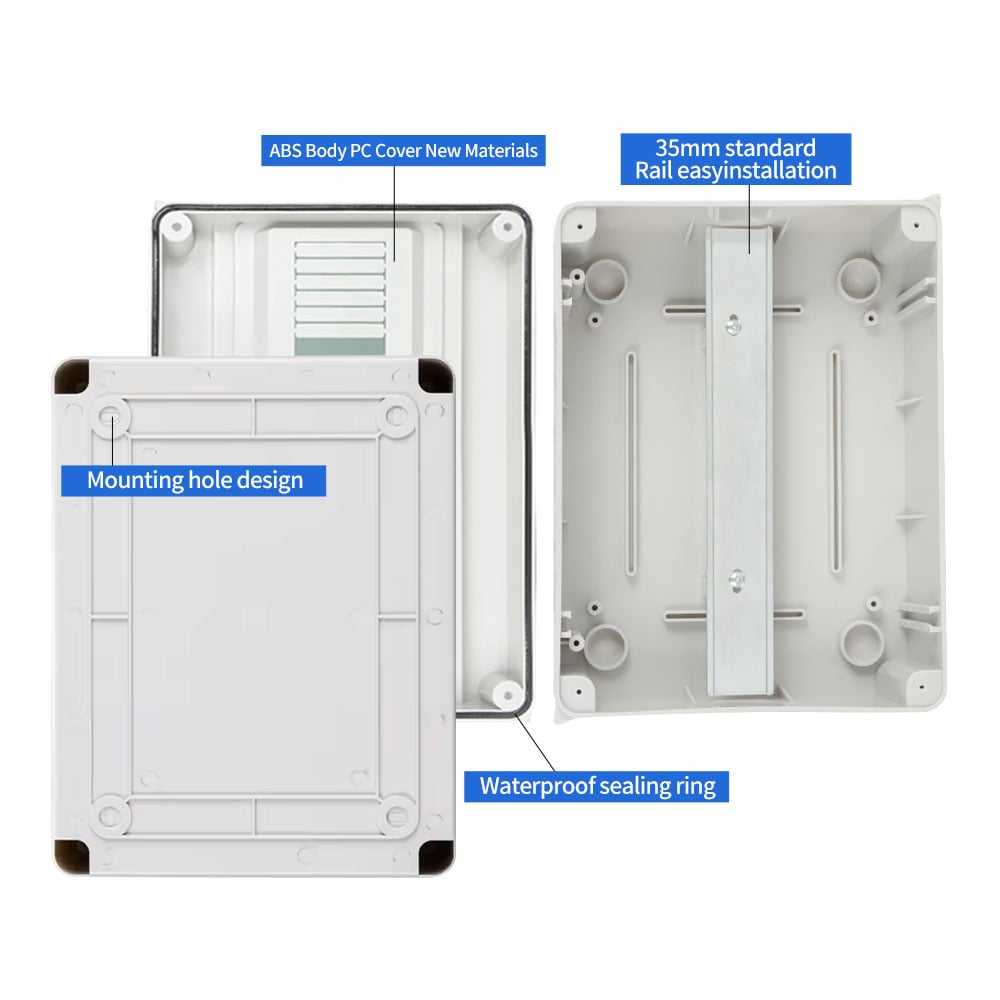

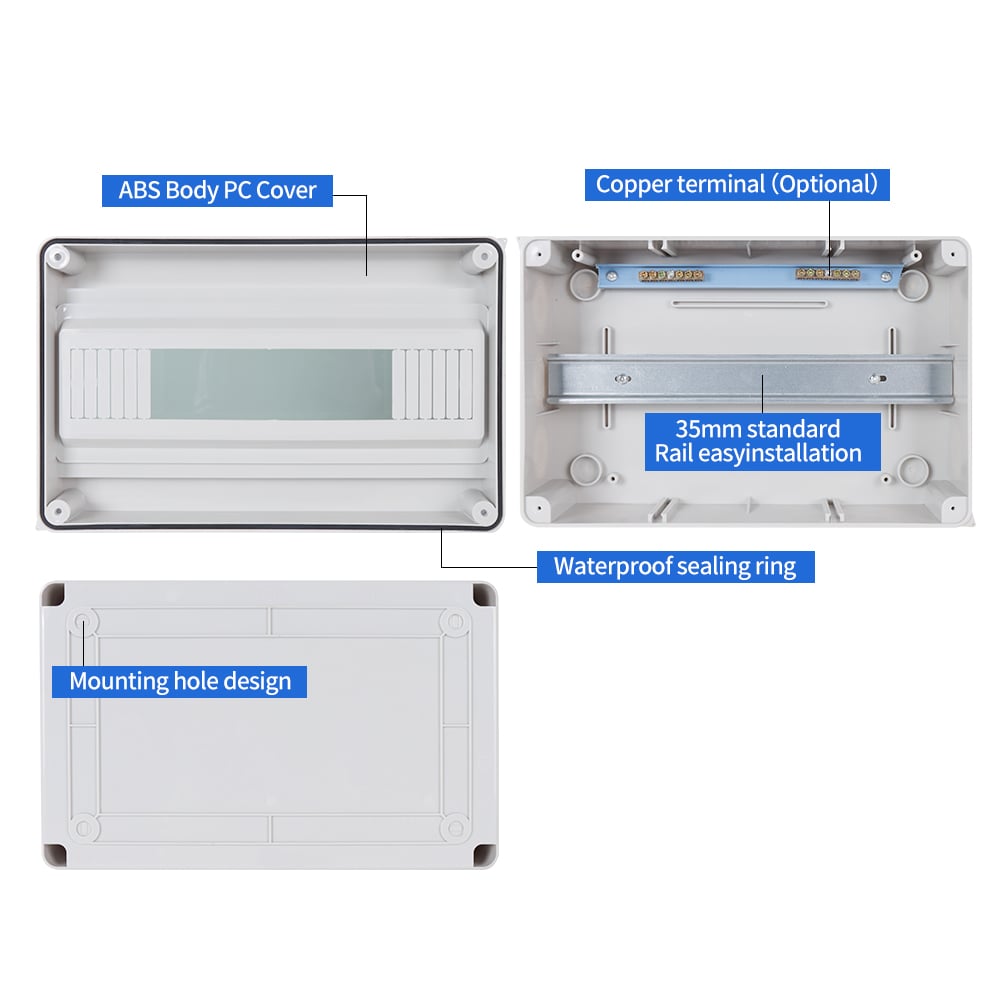

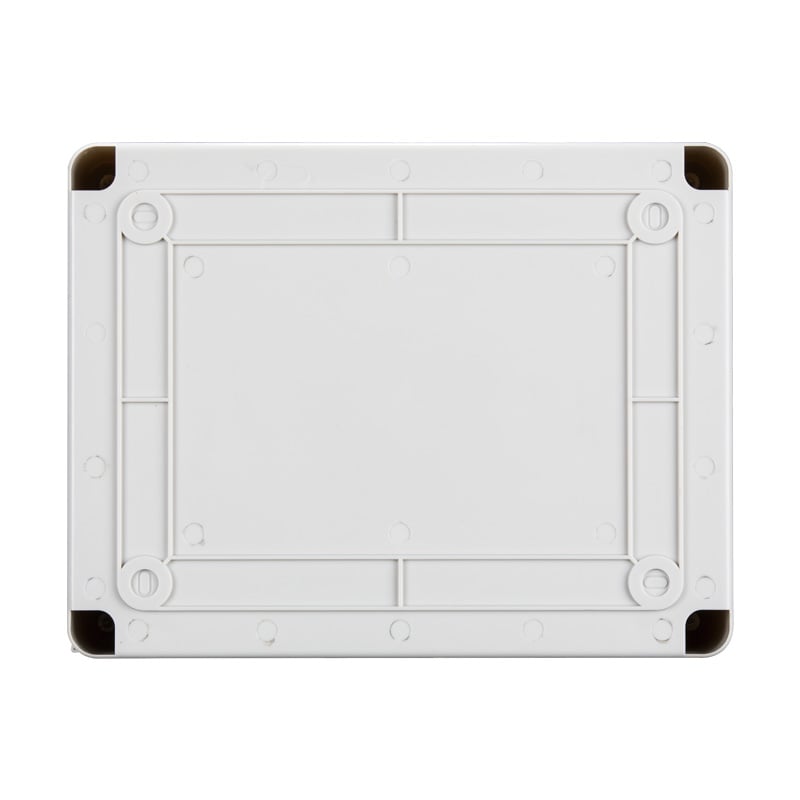

The product base is made of new ABS material, and the transparent window is made of new PC material. A 35mm standard guide rail is installed inside the product, which is compatible with more than 90% of the components on the market. The copper terminals inside the product can be installed selectively. The product has mounting holes, and the wall installation operation is simple and quick.
SN-HT distribution box ABS body PC cover New material, long life, no odor, hard, high elasticity, high toughness, corrosion resistance, aging resistance, compared with the recycled products on the market, which are fragile, easy to crack, short life, and have odor, our products have excellent feedback in the market in terms of service life and safety.

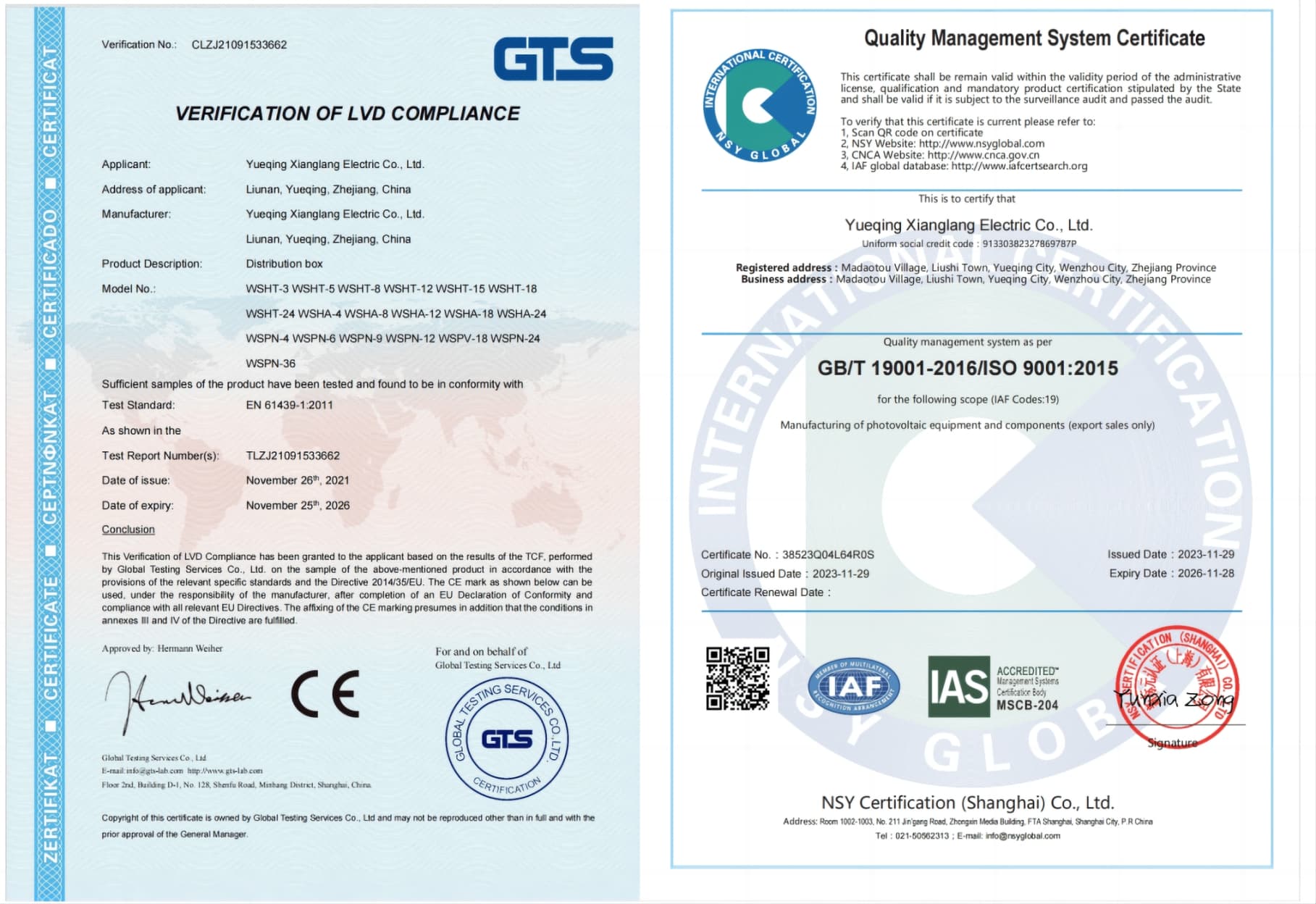

Our products comply with international standards such as IEC-493-1 and have CE, ISO9001 and other certifications. Our products are not afraid of any testing. When purchasing in large quantities, if any product test reports and certifications are required, we can add them!
SUNNOM is China's leading manufacturer of distribution boxes. Its product line covers 13 series and 150 models to meet the power distribution needs of all scenarios. IP30 economic box (HAG): general indoor circuit protection. IP40 standard box (MS/MF): home main line switch control. IP65 dustproof and waterproof junction box (RA/RT), solar energy-specific: IP65 waterproof box (HA/HT/PN), suitable for photovoltaic module assembly junction box. IP66 high-strength junction box (KG/BG/MG), IP67 sealed distribution box (AG/DG). Injection molding → assembly → testing → packaging → delivery The whole process takes place in-house, quality is guaranteed, two-year warranty, 300+ sets of precision molds + 31 fully automatic injection molding machines, monthly production capacity exceeds 100,000 units, to ensure stable delivery.
