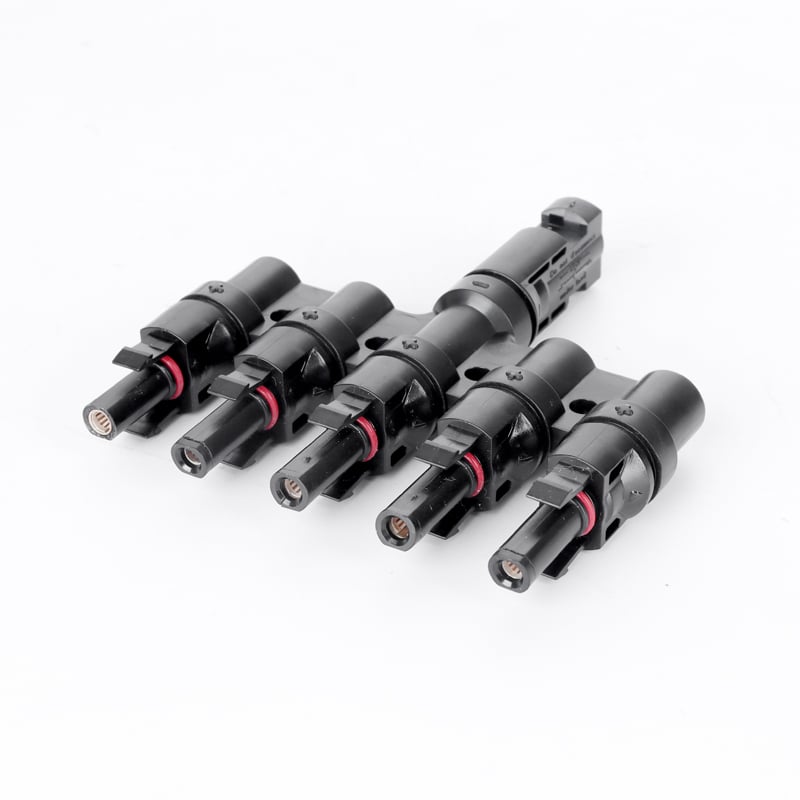

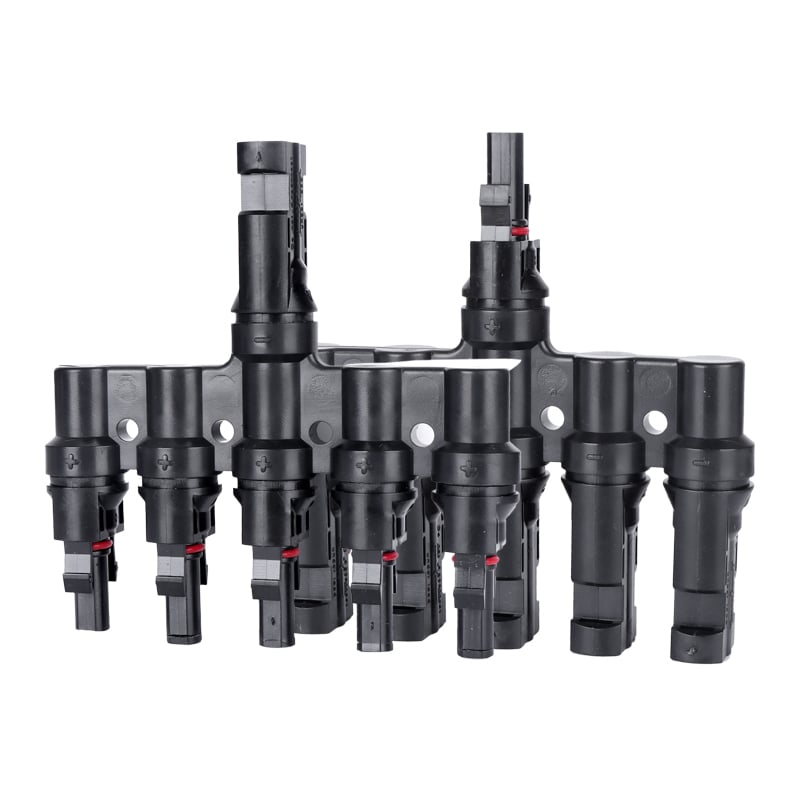

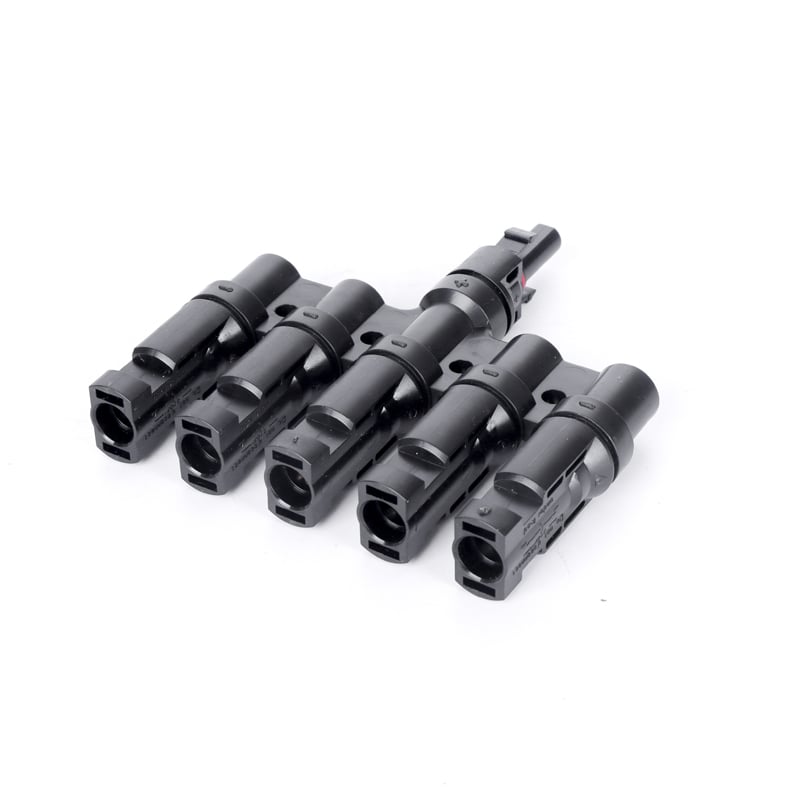

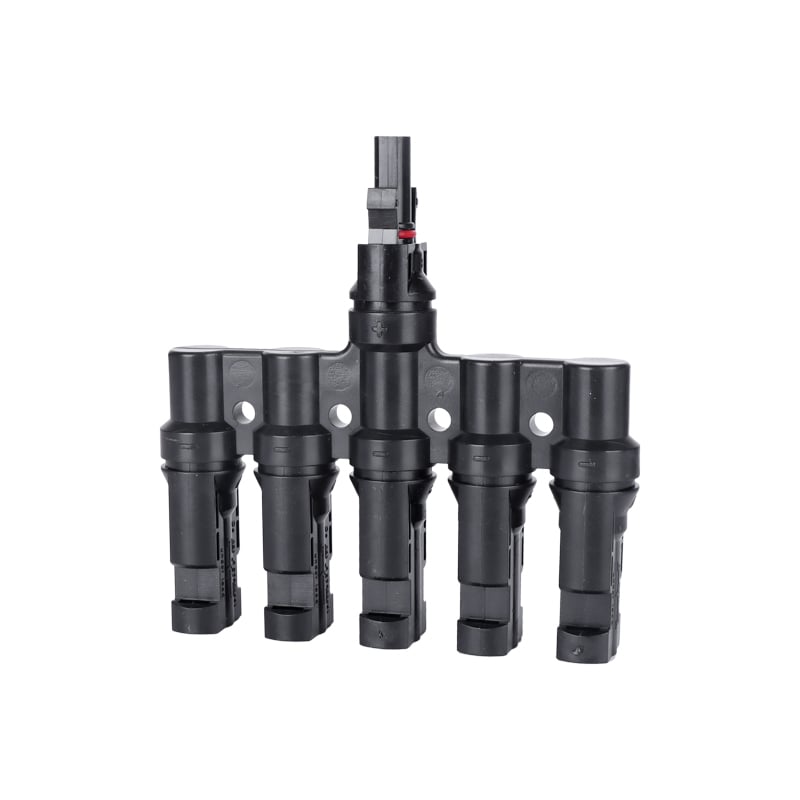

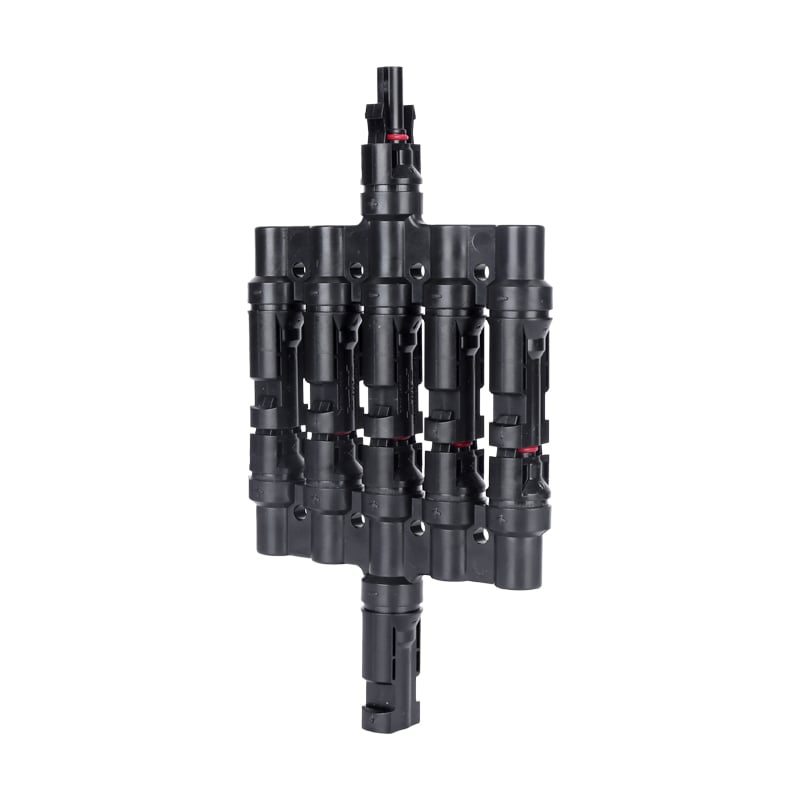

T5 Type Solar Connector
Solar connectors are key components in photovoltaic power generation systems, used to efficiently and safely connect solar panels, inverters, combiner boxes and other electrical equipment. High-quality solar connectors can ensure stable current transmission and reduce energy loss. They are also waterproof, dustproof, and high-temperature resistant, making them suitable for a variety of harsh environments.
Description
| Rated Current | 30A |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50Hz，1min) |
| Overvoltage Type/Pollution Degree | CAT Ⅲ /2 |
| Contact Resistance Of Plug Connector | ImΩ |
| Contact Material | Copper, Tin-plated |
| Insulation Material | PPO/PC |
| Degree Of Protection | IP2X/IP67 |
| Flame Class | UL94-VO |
| Safety Class | Ⅱ |
| Suitable Cable | OD 4.5-8.5(2.5-6.0mm°) |
| Insertion Force/Withdrawal Force | ≤ 50N/≥5ON |
| Connecting System | Crimp connection |
| Temperature Range | -40℃~+125°℃ |
The SNPVCC photovoltaic connector has a built-in sealing ring, and the product's protection level is IP67, which can ensure safe connection in heavy rain environments.
The product shell is made of V0 flame-retardant material and can be used in an environment of -40℃-+125℃, regardless of severe cold or heat, ensuring the safety of system connection
The product adopts copper terminal, low fesistance, fast current delivery, and low loss. Under the premise of the same size and weight, we can achieve the lowest price in the market.

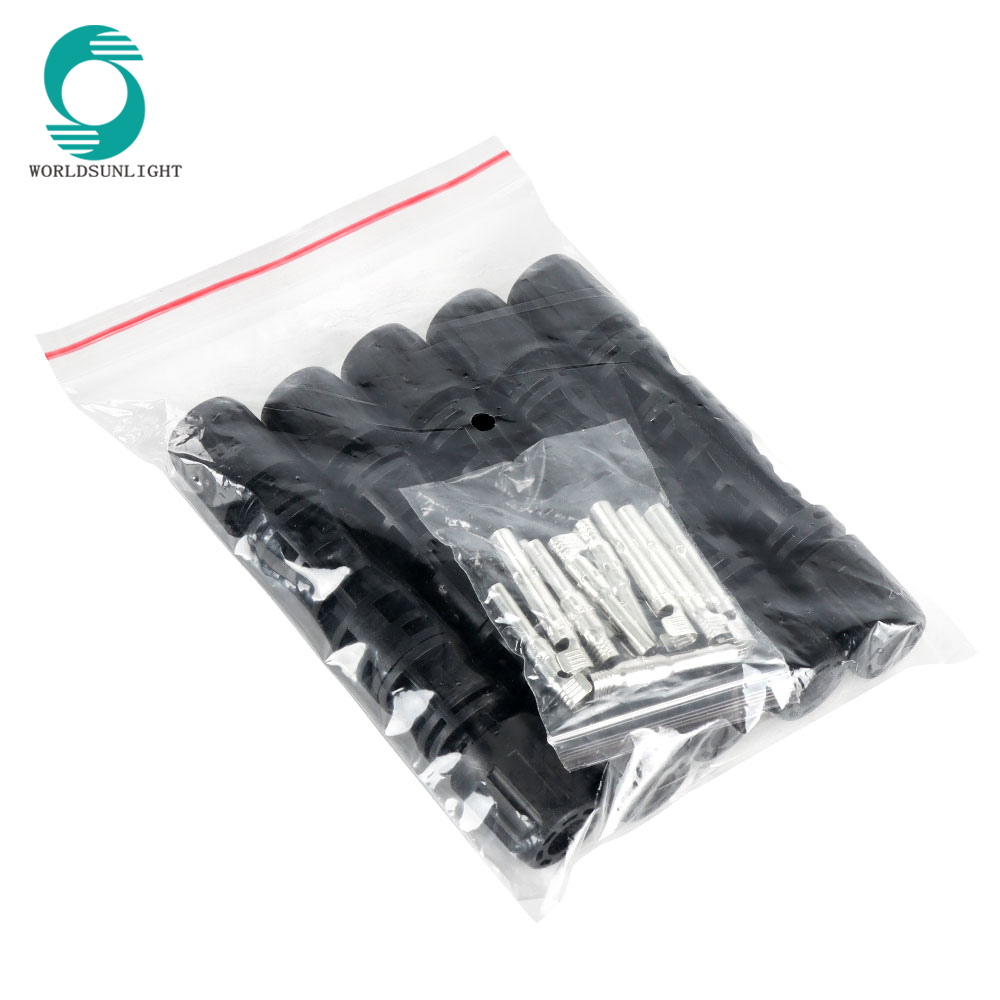

The product adopts 5PCS/PVC bag, 500 PCS/Carton. Stickers and outer packaging can be customized (free design).

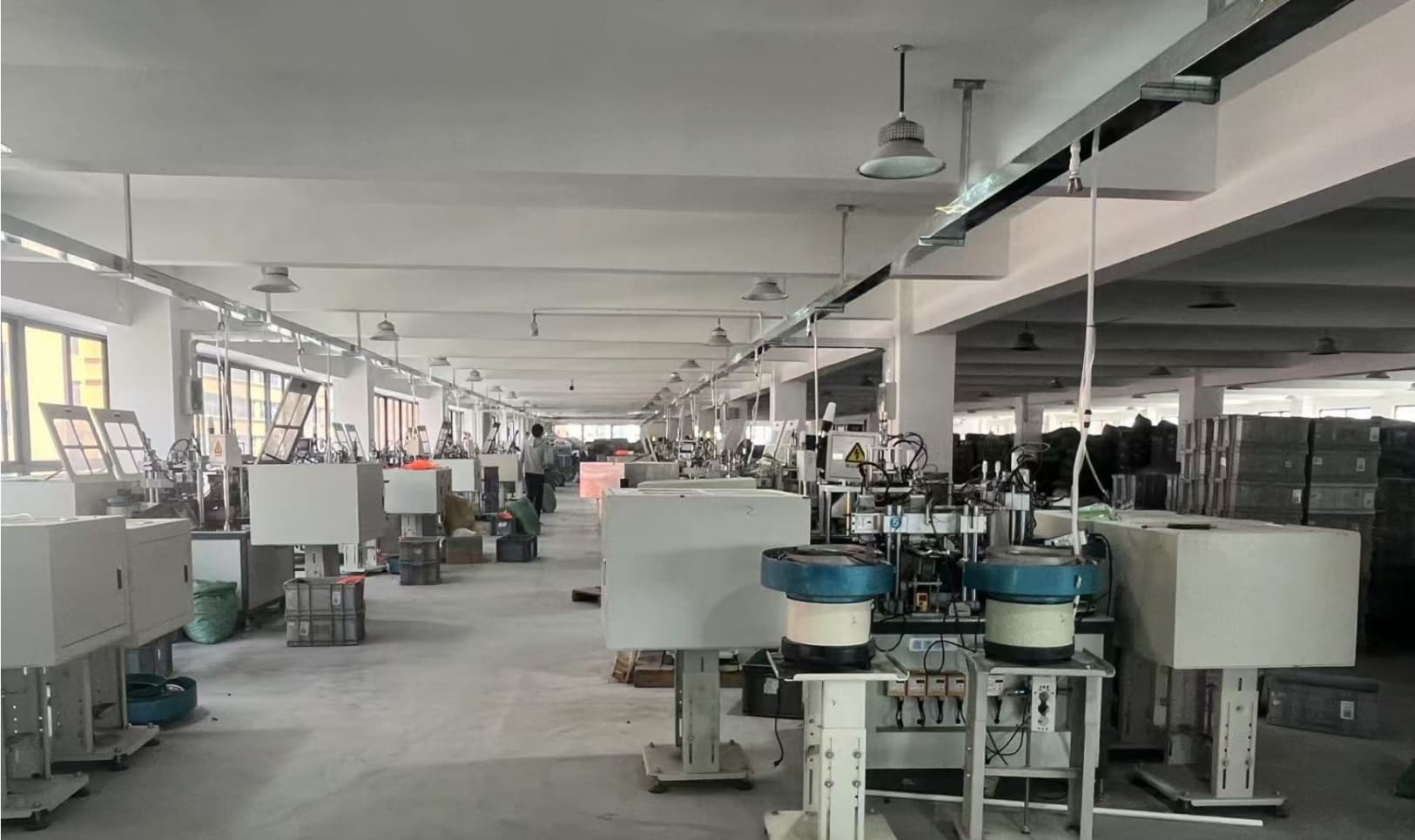

We have 15 solar connector automatic assembly machines and 12 injection molding machines dedicated to connector injection molding. We can produce 300,000 solar connectors per day. 300,000 pieces can be shipped within 3 days, and 500,000 pieces can be shipped within 7 days.

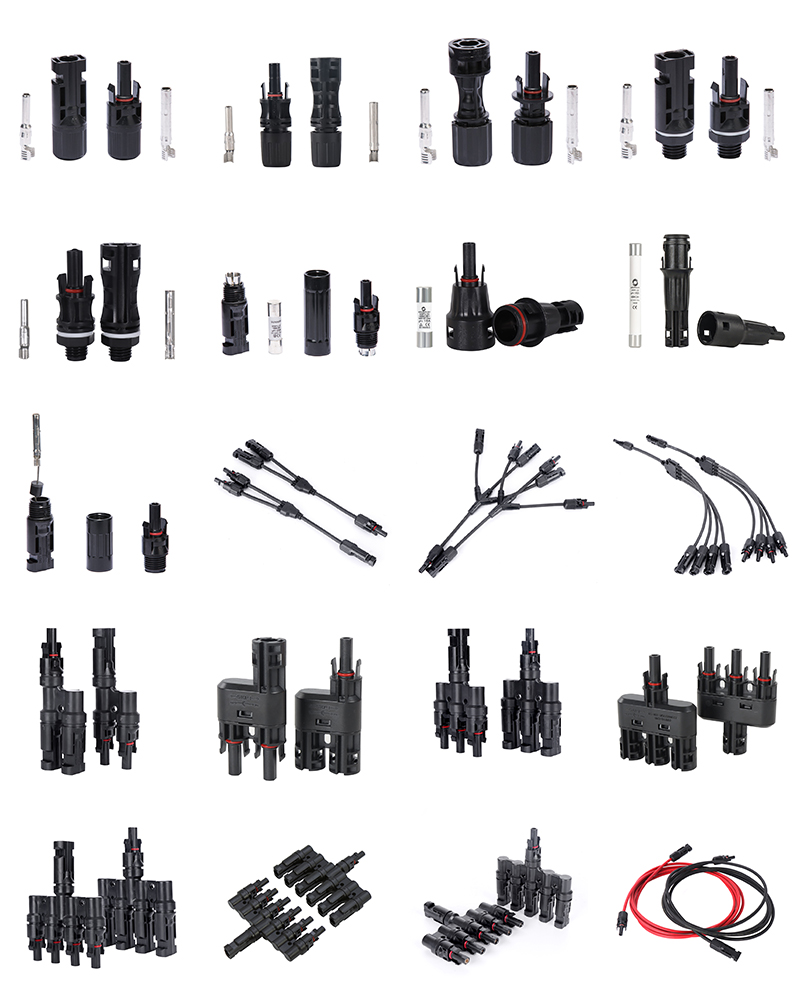

Not only do we have a large production capacity and high cost-effectiveness for our 1000V solar connectors, but we also have high cost-effectiveness and high production capacity for other products, because we have developed a full range of solar connector molds that can cover the entire chain of production processes for various styles, including board-mounted connectors, fuse connectors, diode solar connectors, Y-type and T-type solar connectors, and all cover 1000V and 1500V voltage products.
